Basic Info.
Column number
Four Column
Molding Method
Thermoforming
Automatic Grade
Automatic
Mode of Mould Cutting
in Mould Automatic
Suitable Material
PP, GPPS, HIPS, Pet, PVC, PLA, Biodegradable Sheet
Application
Cups, Bowls, Square Boxes etc.
Transport Package
Wooden Cases
Specification
CE Certificate
Production Capacity
15-32cycles/Min
Product Description
I. Usage:

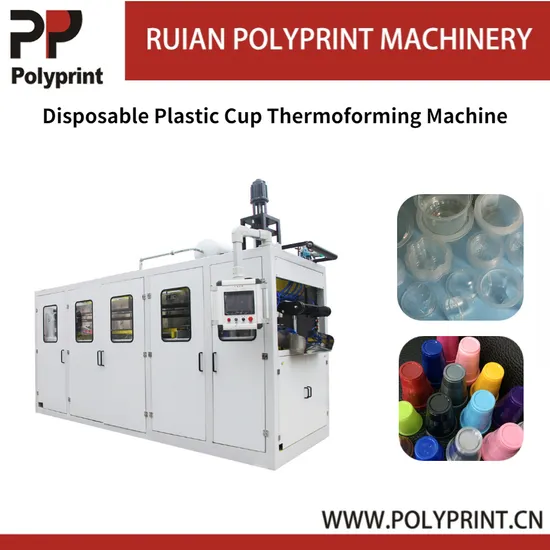

PP-760A Automatic Cam Plastic Cup Thermoforming Machine is mainly used to from PP/HIPS/PET/PVC sheet into various kinds of disposable plastic cups, such as hot/cold drinking cup, ice-cream cup, yogurt cup, milk cup, jelly cup, juice cup,etc. It could also make some regular shape products, such as plate, bowl, cover, dish, box, etc with different moulds.
II. Main Features:
1) The stretching of plugs inside of the upper mould are controlled by air cylinder.
2) The sheet feeding is driven by pin chain. The pin chain is controlled by motor with inverter and the feeding length can be set through touch screen.
3) It adopts four pillars to fix the mould. We could adopt four pillars to fix the mould.
4) The up mould is fixed and the mould plate movement is driven by toggle cam system.
5) The temperature of each zone is controlled by Temperature control module.
6) The production process include sheet feeding, heating, plugs stretching, forming and in-mould cutting and blow final products out.
7) We adopt square steel to make the machine frame stronger.
8) The machines is controlled by PLC and touch screen.
Technical Parameter:
Model | PP-760A |
Machine Control Method | PLC & Touch Screen |
Max. Guide Plate Area | 520mm X1200 mm |
Max. Forming Area | 760mmX420 mm |
Running Speed | 15-32 cycles/min(According to sheet thickness, material used and product shape) |
Sheet Width For Feeding | 500 - 660 mm in rolls |
Mode of Mould Cutting | In mould automatic |
Sheet Thickness Range | 0.20 - 2.0 mm |
Suitable Material | PP, PS, HIPS, PET, PVC |
Max. Forming Depth | 160 mm |
Master Motor Power | 15KW |
Max. Sheet Roll Dia. | 800 mm |
Heating Method | Top + bottom Heating Oven Heating with IR Ceramic Heater |
Temperature Control Method | Temperature Controller and Temperature Control Module |
Water Consumption | (15-20ºC) 0.5-1.0m³/h(recycled Water) |
Air Consumption | 1.3-1.6m³/min, 0.6-0.8Mpa |
Sheet Feeding Method | 2.2KW Gear Motor |
Plug Stretching Method | Binodal Air Cylinder φ125mm |
Approx. Dimension | 4.3×1.5×2.3m |
Approx. Weight | 7200Kg |
Samples:
Our Services:
1.Warranty:1 year warranty after installation, if the spare parts is broken in the warranty period, we will send a free replacement parts as free.
2. Installation and training: we can send 1-2 engineers to install and set up the machine, but all the charges should be paid by buyer.
3.Quotation: valid for 60 days.
Packaging Shipping:
Company Information:
Polyprint Machinery is one of the first company specialized in manufacturing extruder, thermoforming machine, plastic cup making machine, lid forming machine, cup lip curling machine, cup packing machine and cup printing machine since 2006.
>>
