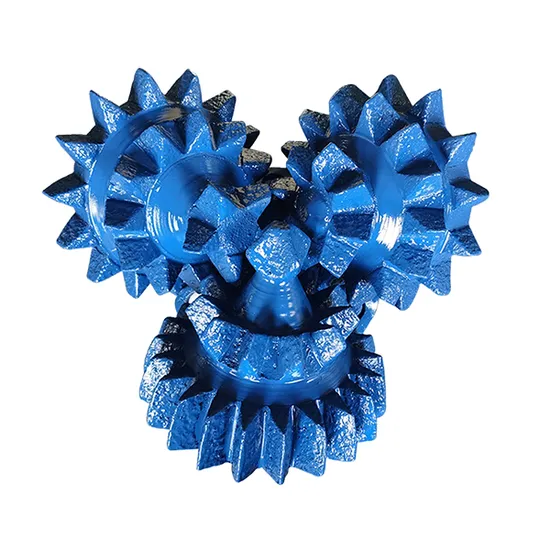

Steel Milled Tooth Rotary Tricone Mining Drilling Drill Bit

Product Description

Milled Steel Tooth Rotary Roller Cone Drilling Bit for Mining Geotechnical Product Description Roller cone bit classificationRoller-cone bits are generally classified as either tungsten carbide insert (TCI) bits or milled-tooth bits.
To assist in comparison of similar products from various manufacturers, the International Association of Drilling Contractors (IADC) has established a unified bit classification system for the naming of drill bits.
IADC roller-cone bit classification methodThe IADC Roller-Cone Bit Classification Method is an industry-wide standard for the description of milled-tooth and insert-type roller-cone bits.
This coding system is based on key design- and application-related criteria.
The currently used version was introduced in 1992 and incorporates criteria cooperatively developed by drill bit manufacturers under the auspices of the Society of Petroleum Engineer.
IADC classification The IADC classification system is a four-character design- and application-related code.
The first three characters are always numeric; the last character is always alphabetic.
he first digit refers to bit series, the second to bit type, the third to bearings and gauge arrangement, and the fourth (alphabetic) character to bit features.

BIT SPECIFICATIONS
Diameter:	24 " (609.6mm)
Tooth Type:	Milled Tooth
Bearing :	roller bearing, gauge protection
API Thread API Connection:	7-5/8 API REG
IACD CODE :	113
OPERATION PARAMETERS
Weight (Kg):	513 KGS
Flow Rate (LPS):	95-110
RPM Range (rotary):	60-150
Weight on Bit (kN):	25-160kN
Make Up Torque ( KN):	46.1~54.2KN

Certifications
Packaging & Shipping
Company exhibition
FAQ

Q: You are a trading company or manufacturer ?

A: Manufacturer, We are a 100% real factory with over 20 years' experience in water/oil/gas wells Drill Bits.

Q: How about your products ?

A : Both of tricone bits and PDC bits strictly conform to API 7 requirements and ISO9001. we will do kinds inspections before delivery, also cover for after-sales service.

Q: Package Methods ?

A: Normally wooden case, also can be steel box; can be customized if need.

Q: Payment Terms ?

A: we accept T/T, L/C, Paypal, Western Union, etc.

Q: Can I visit your factory ?

A: Yes, we welcome you to our factory all the time, will send invitation letters if need; also can show our workshop and warehouse online.

---
