Vertical Mill Drill Zx6350A End Mill Machine Energy Saving Cheap Price

Product Description

Product Description

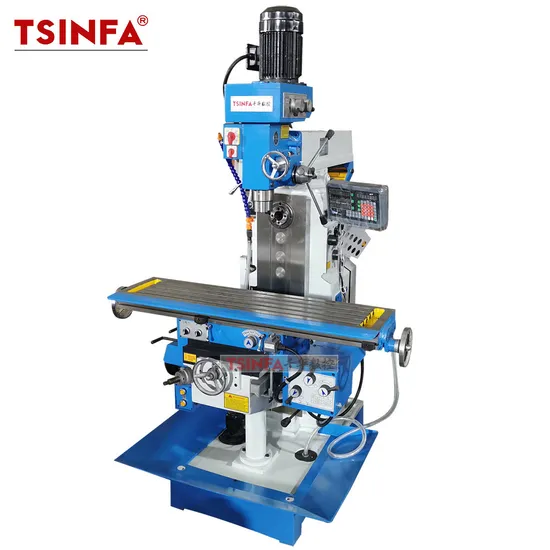

High Quality Vertical Mill Drill ZX6350A Universal drilling and milling machine
The machine can be used both for vertical milling and horizontal milling, vertical drilling, with corresponding attachments, it can also mill various rotary surfaces and grooves, etc. It is the ideal machining equipment for the industries of mechanicmanufacture, mould, automobiles and motorcycles.
Product Parameters

Specification	Unit	ZX6350C ZX6350D ZX6350A	ZX6350ZA
Max drilling dia.	mm	50	50
Max end milling width	mm	100	100
Max vertical milling dia.	mm	25	25
Max boring dia.	mm	120	120
Max tapping dia.	mm	M16	M16
Distance from spindle nose to table surface	mm	80-450	80-450
Spindle taper		M.T.4(V) 7:24 ISO40 (H)	N.T.4(V) 7:24 ISO40 (H)
Spindle speed range	r.p.m	115-1750(V) 40-1300(H)	90-2000(V) 40-1300(H)
Spindle travel	mm	120	120
Table size	mm	1200×280	1200×280
Table travel	mm	600×280×400	600×280×400
Overall dimensions	mm	1350×1285×2300	1350×1285×2300
Main motor	KW	1.5/2.2(V) 2.2(H)	1.5/2.2(V) 2.2(H)
G.W/N.W (kg)	Kg	1200/1100	1300/1200

Optional Accessories
Certifications
Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers.
Packaging & Shipping
FAQ
Q1:How can l choose the most suitable machines ?Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .Q2: What's your main products of your company?Products cover metal cutting machine and metal forming machine two categories. Metal cuttinging machine tools are: CNC machining center, CNC lathe, manual lathe, manual milling, sawing machine, etc. Metal forming machine: hydraulic press machine.Q3: Where is our factory located? How can l visit there? Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.You are warmly welcomed to visit us.Q4. How do you transport it?Provide Transportation Solution DDP/CIF/FOB/FCAQ5: What's the Payment Terms ?T/T ,30% initial payment when order,70% balance payment before shipment .06: What's the MoQ?A: 1 set .(Only some low cost machines will be more than 1 set )We want to know:1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!2.lf need ClF Price, please kindly tell us the port of destination.

---
