US$7,500.00-20,000.00
|
1 Set
(MOQ)
|
Basic Info.
Processing Accessory
Chuck Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Four-Station Tool Holder
Controlling Mode
Lathe Controller
Automatic Grade
Semiautomatic
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventio
Processing Precision
0.01~0.02(mm)
Numerical Control
CNC/Mnc
Swing Over Carriage
230mm
Max. Workpiece Length
1000mm
Max. Processing Length
950mm
3-Jaw Chuck Diameter
200mm
Packing Size
2650*1340*2000mm
Specification
Product size2430/1145/1740 mm
Origin
Tengzhou, Shandong, China
Production Capacity
50PCS/Years
Packaging & Delivery
Package Size
2650.00cm * 1340.00cm * 2000.00cm
Package Gross Weight
2160.000kg
Product Description
| ltems | Unit | MOdel CD6140-1000 |
| Swing over bed | mm | 400 |
| Swing over carriage | mm | 230 |
| Center height | mm | 220 |
| Max. workpiece length | mm | 1000 |
| Max. processing length | mm | 950 |
| 3-jaw chuck diameter | mm | 200 |
| Speed ranges | rpm | 20-1600 |
| Spindle bore | mm | 58 |
| Spindle taper | mm | MT6 |
| Spindle nose | | C6/D6 |
| Top slide travel | mm | 150 |
| Cross travel (X axis) | mm | 260 |
| Longitudinal travel (Zaxis) | mm | 1000 |
| Number of stations | | 4 |
| Tool shank size | mm | 25*25 |
| Quill travel | mm | 160 |
| Quill diameter | mm | 75 |
| Quill taper | | MT5 |
Detailed Photos

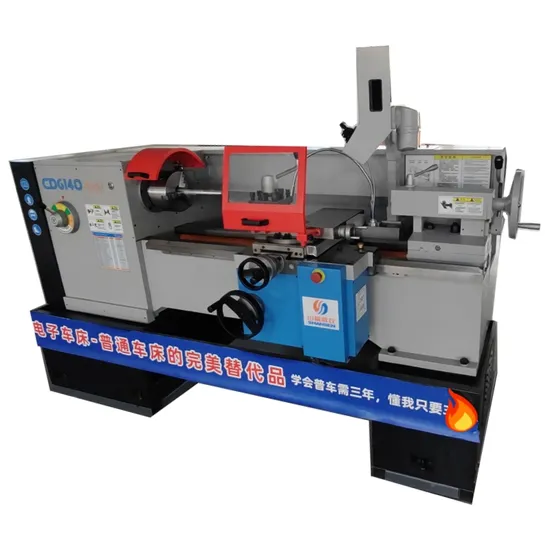

Product Photos
FAQ
1.Q: Are you a factory?
A: yes, we are. and we have 25 years production experience and over 10 years export experience. you can get our good quality and service and competitive price.
2.Q: How long is your delivery time?
A: Generally it is 5-15 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is according to quantity.
3.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4.Q: What is your terms of payment ?
A: Payment<=20000USD, 100% in advance. Payment>=20000USD, 60% T/T in advance ,balance before shippment.
5. Q:What can you buy from us?
A: The company's main products include: CNC system, human-machine interface, Intelligent Circuit Board, oil mist collector, safety door switch, relay module, cable separator module, hand-held pulse generator, cable harness, warning lights, LED work lights, electronic lathe and so on, counting up to more than 20 kinds of products.
Please contact us if you do not find the product you want.
>>
