| US$38,000.00-45,000.00 | 1 SET (MOQ) |

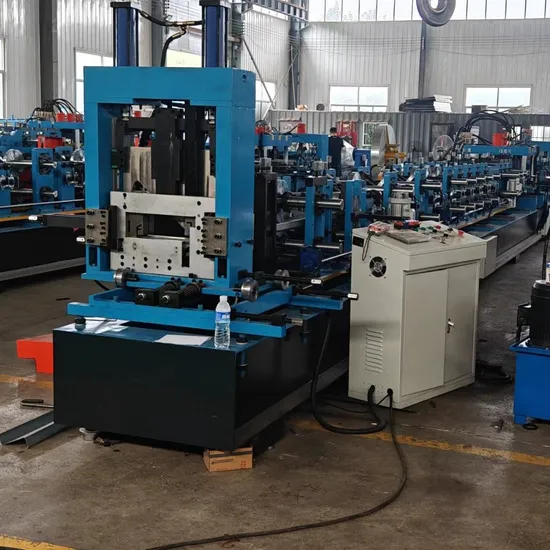

| 9. Suitable material to process Material: galvanized steel strip, galvalume steel strip; Thickness: 1.0mm - 2.0mm; Width: as per drawing. 10. Technique parameters of the main roll forming machine (1). Forming stations: 21; (2). Roller material: GCr15 steel with CNC machining; (3). Diameter of shaft: ยข80mm solid forged 45 #steel, quenching process; (4). Material of shaft: solid 45# steel with grinding process; (5). Frame of the machine: welded with 350H section steel; (6). Wall panel thickness: 20mm; (7). Forming motor power: 30KW; (8). Flying saw cutting; (9). Control system: PLC brand is DELTA from Taiwan; (10). Material leveling device; (11). Driving mode: double 2" chains; (12). Forming speed: 0-10m/min; (13). Power supply: 380V, 50HZ, 3 PHASES; (14). 80T punch with one set die and serve feeding 11. The Chart of Process Flow Manual Decoiler ---Leveling & Feeding Device --- Punch --- Main Roll Forming System --- PLC Control System --- Hydraulic Station System --- Cutting System --- Receiving Table |
