US$20.00-200.00
|
5 Pieces
(MOQ)
|
Basic Info.
Discharge Standard
Euro IV
Noise Source
Mechanical Noise and Combustion
The Noise of Engine
Aerodynamic Noise
Automobile Chassis Noise
Transmission Noise
Component
Catalytic Converter
Thickness of Foil
0.03 to 0.1mm
Material
Stainless Steel 304,316L,SUS444, SUS441, SUS430
Hole Density
100-900 Cpsi
Emission Standard
Euro2, Euro3, Euro4, Euro5, Euro6; EPA and Carb
Active Catalyst Ingredients
PT, Pd, Rh, and Rare Earth Elements
Substrates Material
Metallic (Fecral)
Application
All on-Road & off-Road Vehicles, Machineries, and
Engine Compliance
Petrol Engines, Diesel Engines and Generators
Shape
Round, Oval, Race Track
The Braze Welding
Nickel-Based Solder
Production Capacity
5000pieces/Month
Packaging & Delivery
Package Size
50.00cm * 50.00cm * 50.00cm
Package Gross Weight
5.000kg
Product Description

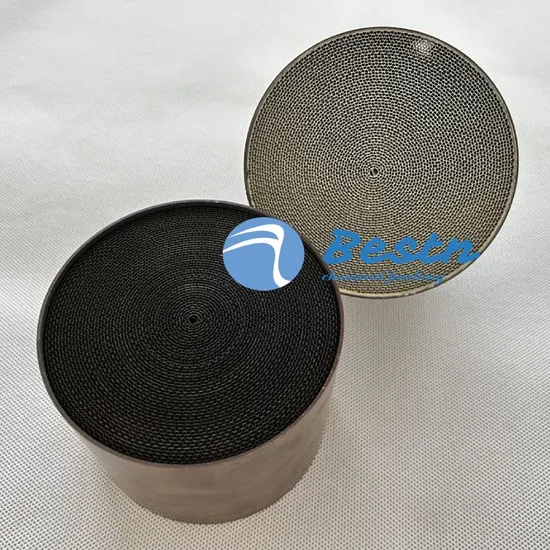

Metallic substrate Three way catalystIt is widely used in motorcycles and vehicle (gasoline engine and diesel engine) exhaust system. We can supply both metallic substrate coated with noble metals of Pt, Pd, Rh and without noble metals, and can meet the emission standard Euro II, Euro III, Euro IV, Euro V, EPA and CARB.
The cells of metallic substrate density can be 100, 200, 300, 400, 600 or 900 CPSI and more. The shape is round, oval, racetrack
and other special shape. .The shell materials: Ferritic stainless steel SUS444, SUS441, SUS430 and austenitic stainless steel SUS304, SUS316. .The core materials: Domestic FeCrAl (2073/216), import FeCrAl (1.4725/1.4767), copper and iron, etc..The foil thickness: 0.03-0.1 mm.
.The hole density: 100-900 CPSI.
.The braze welding: Nickel-based solder.
.Shape: Round, oval, racetrack, rectangle and other especial shape according to the design of client.
| Emission standard | Euro2, Euro3, Euro4, Euro5, Euro6; EPA and CARB |
| Application | all on-road & off-road vehicles, machineries, and industrial installations |
| Engine compliance | petrol engines, diesel engines and generators |
| Diameter | 1" - 15" |
| Height | 1" - 12" |
| Cell per square inch (CPSI) | 100, 200, 300, 400, 500, 600, 800, 1000 |
| Shape | round, oval, race track |
| Substrates material | metallic FeCrAL(2073/216) |
| Active catalyst ingredients | Pt, Pd, Rh, and rare earth elements |
Specification
| Shape | Shell size(mm) | Core size(mm) | Cell density(CPSI) |
| Cylinder | Φ 30×22 | Φ 28×20 | 100/200/300/400 |
| Cylinder | Φ 35×20 | Φ 33×20 | 100/200/300/400 |
| Cylinder | Φ 35×30 | Φ 33×30 | 100/200/300/400 |
| Cylinder | Φ 35×40 | Φ 33×40 | 100/200/300/400 |
| Cylinder | Φ 35×50 | Φ 33×50 | 100/200/300/400 |
| Cylinder | Φ 35×60 | Φ 33×60 | 100/200/300/400 |
| Cylinder | Φ35 × 70/100/130 | Φ33 × 60/90/120 | 100/200/300/400 |
| Cylinder | Φ42 × 70/100/130 | Φ40 × 60/90/120 | 100/200/300/400 |
| Cylinder | Φ45 × 70/100/130 | Φ43 × 60/90/120 | 100/200/300/400 |
| Cylinder | Φ63,5 × 85/100/130 | Φ60,5 × 74,5/90/120 | 200/300/400 |
| Cylinder | Φ73 × 70/100/130 L | Φ70 × 60/90/120 | 200/300/400 |
| Cylinder | Φ93 × 70/100/130 | Φ90 × 60/90/120 | 200/300/400 |
| Cylinder | Φ100,3 × 100/130 | Φ98,3 × 90/120 | 600 |
| Cylinder | Φ144 × 150/152,4 | Φ142 × 140/142,4 | 200/300/400 |
| Cylinder | Φ190 × 200 | Φ188 × 190 | 200/300/400 |
| Cylinder | Φ420 × 100/130 | Φ416 × 90/120 | 300/400 |
| Race track | 123×63×85 | 120×60×75 | 200/300 |
| Race track | 123×63×100 | 120×60×90 | 200/300 |
| Race track | 78,5×52×104 | 76,5×50×90 | 200/300 |
1. High-quality coating.
2. Can depend client's design the shape and size.
3. Higher gas purification effect (CO>99%, NOx>99%, HC≥97%).
4. Good against catalyst poisoning performance and useful life
5. Polishing and etching are available.
6. Up to Euro VI Emission Standard.
>>
