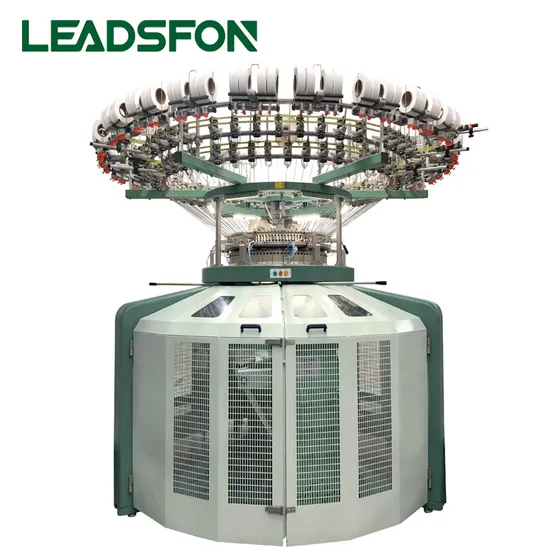

Leadsfon Latest Single Jersey Circular Knitting Machine for Collars

US$36,000.00-45,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SJ3.0
Knitting Machine Cut
E28
Knitting Product Type
Underwear
Knitting Style
Weft
Knitting Method
Single
Needle Style
Bearded Needle/Spring Needle
Needle Bar Style
Circular Knitting Machine
Computerized
Computerized
Certification
CE, ISO9001: 2015
Condition
New
After-sales Service
on-Door Maintenance in Many Countries.
Weight
2800kg
Gauges
10-44gg
Diameter
26-42
Transport Package
Wood Pallet
Specification
338*229*217
Trademark
LEADSFON
Origin
China
HS Code
844712
Production Capacity
40/Month

Product Description


SJ3.0 Highly productive basic singe jersey model The best choice of single jersey which has been tested by the market.

Product Features

1.High performance:OPEN WIDTH SPEED FACTOR UP TO 960(30rpm at 32").
2.Higher fabric quality.
3.Less maintenance activities.
4.Cost - effective & after-sales service.

Product Advantages

1.Selection of imported Italian gears and transmission.
2.Independent patented spiral lift adjustment system.
3.Distinguished from the four - track steel wire drive conventional equipment,using its own patented dual steel wire runway ,reduce friction , smooth operation , greatly enhance the speed.
4.Independent patented take-down system.
5.Special steel frame to balance the body during high-speed operation.
6.Three sets of five-stage yarn feed system.
7.Large pattern range with up to 4 needles tracks in cylinder cam and a wide gauge fabric.
8.Different frame types available for different production requirement.
Technical details
Type
SJ3.0
Diameter [inch]
26" - 42"
No. Of feeders
78F - 126F
Speed factor [max]
960
(Example : 30rpm at 32" )
Gauges [E]
14GG-44GG

Available frames
Tubular frame
Open width frame

Standard tubular frame
Giant tubular frame
Standard Open width frame
Giant open width frame
Frame For 550 mm Fabric rolls
Frame for 680mm fabric rolls
Frame for 330mm fabric rolls
Frame for 680mm fabric rolls
