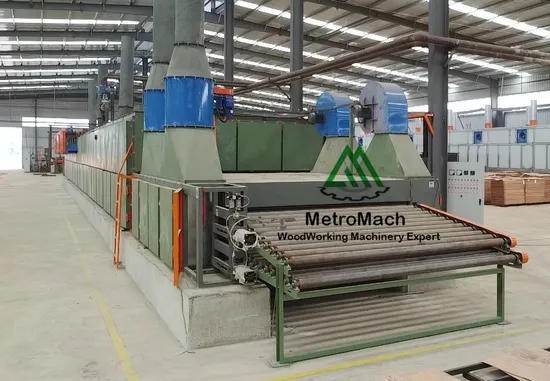

Woodworking High Efficiency Plywood Veneer Roller Type Two Decks Dryer Machine

Product Description

Product Description Woodworking Plywood Veneer Roller Type Two Decks Dryer Machine
1. MAIN FEATURES:
1. The machine is usually designed and customized according to user 's requirement (such as veneer size,drying capacity, workshop space ).
2. Mainly used to remove extra moisture from the veneer.
3. The heat medium can be thermal oil or hot steam.
4. Roller gear drive system help keep the dryed veneer smooth and flat.
5. Speed adjustable according to different veneer MC and veneer thickness.
2. TECHNICAL SPECIFICATIONS:

Density	550Kg/m3
Veneer thickness range	1.5-3.6mm
Initial moisture content	80%
Final moisture content	10%
Load ratio	80% to 85%
Woking width	2650mm
Working decks	2 decks
Length of heating section	2000mm x 14 sections
Length of cooling section	2000mm x 3 section
Transmission speed	0-15m per min
Drying capacity	3-4m3 per hour
Steam consumption	2100kg per hour
Hot wind motor power	5.5kw*14
Transmission motor power	7.5Kw x 2sets
Ventilation motor power	4Kw x 4sets
Cooling motor power	3kw*3
Machine oveall dimension	23970×5150×4460mm
Machine net weight	60000Kgs

3.More Pictures:

---
