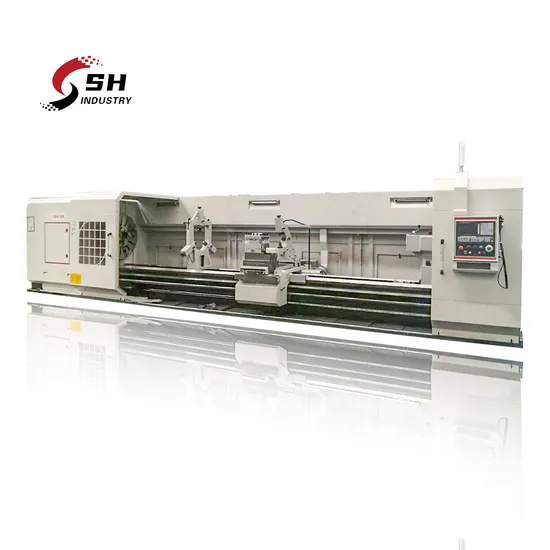

Horizontal Turning Ck61160 High Precision Hot Sale CNC Lathe Machine

Product Description

Product Description
Horizontal Turning Ck61160 High Precision Hot Sale CNC Lathe Machine
Product Parameters
Product main features and uses:
The machine tool has the characteristics of high power and high stiffness, can undertake a variety of turning workpiece, it can turning the various parts of the outer circle, inner hole, end and metric thread, Whitworth, module thread and pitch diameter of the thread forming surface; in addition, you can also meet drilling, every hole, sets and other materials process requirements. It can also be used in hard cutting tool for powerful cutting, processing a variety of ferrous and non-ferrous metals.
The width of the side wall of the double bed ribs, inner ribs with box and diagonal reinforcement integral bed structure, high integral rigidity.
main features:
* Higher stability one-piece machine bed
* 3-gear spindle speed step-less in gear
* Higher rigidity pedestal
* Wider layer board
* Integrated automatic lubrication system
Standard configuration:
Guideway width 550mm
Manual 3 steps speed
3 jaw manual chuck
Electric 4 position
Manual tailstock
Optional configuration:
Hydraulic chuck
Electric turret
Hydraulic tailstock
Independent spindle

Technical Specifications	SPECIFICATIONS	Units	CK61100	CK61125	CK61140	CK61160
	Swing over bed	mm	1000	1250	1400	1600
	Swing over cross slide	mm	610	850	1000	1200
	Distance between centers	mm	1500/3000/4000/	1500/3000/4000/	1500/3000/4000/	1500/3000/4000/
			5000/6000	5000/6000	5000/6000	5000/6000
	Guideway width	mm	755	755	755	755
	Max. load capacity	T	6/10	6/10	6/10	6/10
	Spindle bore	mm	130	130	130	130
	Spindle bore taper	-	Metric φ160/MT6	Metric φ160/MT6	Metric φ1460/MT6	Metric φ160/MT6
	Spindle nose type	-	A2-15	A2-15	A2-15	A2-15
	Spindle speed steps	-	VF. 4 steps	VF. 4 steps	VF. 4 steps	VF. 4 steps
	Spindle speed range	rpm	4-300	4-300	4-300	4-300
	Chuck	mm	φ1000 4-jaw manual	φ1000 4-jaw manual	φ1000 4-jaw manual	φ1000 4-jaw manual
	Turret/tool post	-	Electric 4 position	Electric 4 position	Electric 4 position	Electric 4 position
	Tool size	mm	40 x 40	40 x 40	40 x 40	40 x 40
	X axis travel	mm	520	620	720	720
	Z axis travel	mm	1350/2850/3850/	1350/2850/3850/	1350/2850/3850/	1350/2850/3850/
			4850/5850	4850/5850	4850/5850	4850/5850
	X axis rapid traverse	mm/min	4000	4000	4000	4000
	Z axis rapid traverse	mm/min	6000	6000	6000	6000
	Tailstock quill diameter	mm	φ160	φ160	φ160	φ160
	Tailstock quill taper	-	MT6	MT6	MT6	MT6
	Tailstock quill travel	mm	300	300	300	300
	Main spindle motor	kw	22	22	22	22
	Coolant pump motor	kw	0.125	0.125	0.125	0.125
	Weight for 1500	kg	10000	11000	12000	13000
	Weight for 3000	kg	11500	12500	13500	14500
	Weight for 4000	kg	12500	13500	14500	15500
	Weight for 5000	kg	13500	14500	15500	16500
	Weight for 6000	kg	14500	15500	16500	17500
	Dimension for 1500	mm	5000x2100x2100	5000x2250x2300	5000x2250x2300	5000x2350x2600
	Dimension for 3000	mm	6500x2100x2100	6500x2250x2300	6500x2250x2300	6500x2350x2600
	Dimension for 4000	mm	7500x2100x2100	7500x2250x2300	7500x2250x2300	7500x2350x2600
	Dimension for 5000	mm	8500x2100x2100	8500x2250x2300	8500x2250x2300	8500x2350x2600
	Dimension for 6000	mm	9500x2100x2100	9500x2250x2300	9500x2250x2300	9500x2350x2600

Realistic photos
CK series CNC Lathe Machine is an economical, practical type machine tools with good quality.
C The machine has a very wide use which is suitable for internal and external turning, tapering, circular arc,thread, boring, reaming of axle and disk workpiece.It also can achieve non- -circular curve machining.
You can choose the CNC system and optional accessories according to your requirement.
Detailed Photos
Our Advantages
Why not consult us once instead of searching ten times
Trading one day earlier, you will earn money one day earlier than others and occupy more market share
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
