US$1,220.00-3,790.00
|
1 set
(MOQ)
|
Basic Info.
Structure
Horizontal Drilling Machine
Controlling Mode
Artificial
Automatic Grade
Automatic
Certification
CE, ISO 9001, SGS
Product Name
DTH Drilling Rig Machine
Air Consumption
0.5-0.7MPa
Air Cylinder Diameter
90mm 140mm
Drilling Rod Length
1025mm
Main Application
Blasthole
Transport Package
Fumigation Free Woodend Case Package
Specification
Weight: 320kg 470kg 480kg
Production Capacity
750sets/Month
Packaging & Delivery
Package Size
1750.00cm * 300.00cm * 500.00cm
Package Gross Weight
350.000kg
Product Description

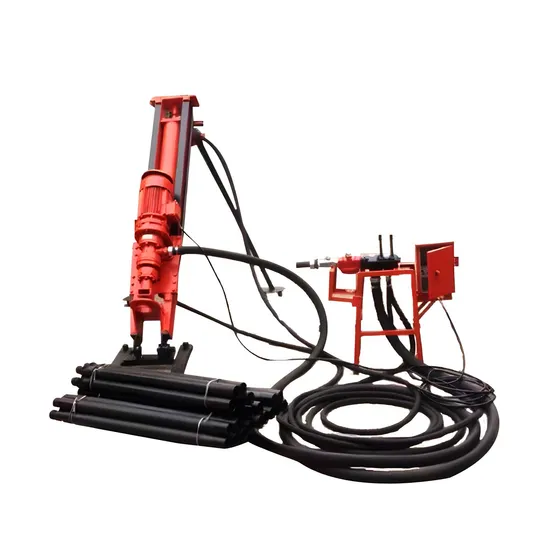

Pneumatic DTH Drilling Rig Water Borehole Drilling Machine For Sale
Yugong Brand DTH Drilling Rig Machine is applicable to small and medium-sized mines and road construction,
defense and water conservancy and stone works in the large diameter borehole drilling operations. Portable Drilling
Rig is also an indispensable rock drilling facility for open pit mining, especially for bumps and rugged terrain where
other drilling vehicles do not work properly.
Applications
Applicable to small and medium-sized mines and road construction, defense and water conservancy and stone works in the large diameter borehole drilling operations.
It is also an indispensable rock drilling facility for open pit mining, especially for bumps and rugged terrain where other drilling vehicles do not work properly.
Parameters
| Model | YGD70 YGD80
| YGD100 | YGQ100 | YGB100-4 YGB120-5.5
|
| Drilling Diameter (mm) | 50-90 90-120
| 90-130 | 90-130 | 90-130 |
| Apply Rock | ≥20 | ≥20 | ≥20 | ≥20 |
| Drilling Depth (m) | 15 | ≥25 | ≥25 | ≥30-40 |
| Drilling Rotate Speed (r/min) | 110 | 110 | 110 | 110 |
| Working Air Pressure (Mpa) | 0.5-0.7 | 0.5-1.0 | 0.5-1.0 | 0.5-1.0 |
| Air Consumption (m3/min) | 4 | 6 | 12 | 10 |
| Cylinder Diameter (mm) | 90 | 140 | 140 | 140 |
| Propulsion Stroke (mm) | 1070 | 1070 | 1070 | 1070 |
| Max Propelled Force (N) | 3600 8000
| 9600 | 9600 | 9600 |
| Electric Motor Power (KW) | 3 4
| 4 | - | 4 5.5
|
| Electric Motor Voltage (V) | 380
| 380 | - | 380 |
| Rated Speed (r/min) | 1440
| 1440 | 3200 | 1440 |
| Drilling Rod OD (mm) | 42
| 50-60 | 50-60 | 60 |
| Drilling Rod Length (mm) | 1025
| 1025 | 1025 | 1025 |
| Dimension (mm) | 1740*260*420
| 2280*440*550 | 2230*380*550 | 2230*380*550 |
| Weight (kg) | 280 320
| 470 | 450 | 460 480
|
More Details
Appllication
