Product Details
Product Description
Product Description
waste tire recycling machine is used to all kinds of tyre, such as the truck tire, car tire, soild tire,OTR tyre etc. Make them becomes as the TDF as the material for the new energy, or crushing as the fineness rubber powder, as the raw material of new tyre, or the football playground, or as the new rubber block through the melting. it as also could be as the raw material of the rubber plate to reduce the shaking or others.
characters:
1.The full autoamtic controlled by the PLC system.
2. The whole system is environmental friendly, there is fit the filter dust removal. 3. High efficiency processing by the physical mechinical method.
4. Low noise
5. The finals products is as customer requirement
working principle

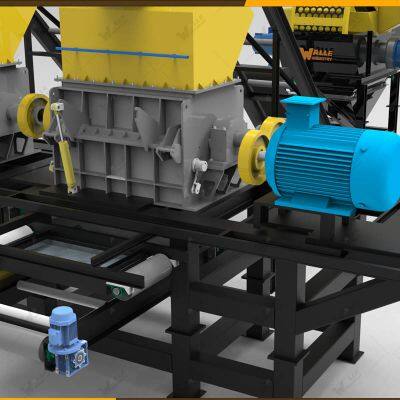

the waste tire or rubber belt will be removed the tyre beader, after that the rubber rim will be put into the three in one rubber processing machine to cutting them into smaller chips, the outcomes size is approx 50-100mm. the secondary is the two rollers grinder machine to cut the material into powder with the chips, the vibration table will sort the rubber powder out, the magnetic separator will sort the Steel wire out, the 2th vibration table to remove the Nylon from the material. magnetic separator box will remove the rest steel wire from the rubber material, then collecting by the jumbo bags system. if the material is the Radial Nylon tire, the material of Nylon connected by the cyclone with the blower.
The rubber purity could reach 99%, the wire parts purity approx 98%.
Technical parameters
| Type | power | Cutter Qty PCS | reducer | chamber mm | feeding port | overall size mm | weight T | capacity (T/h) |
| WL-800 | 15kw*2 | 30 | 400 | 600*388 | 1000*766 | 1820*800*1930 | 2.1 | 0.5-0.8 |
| WL-1000 | 22kw*2 | 20 | 500 | 640*588 | 1170*990 | 3260*1300*2370 | 3.5 | 1-1.5 |
| WL-1200 | 37kw*2 | 30 | 355 | 1200*788 | 1600*1200 | 4700*2000*2700 | 8 | 2.5-3 |
| WL-1500 | 55kw*2 | 30 | 400 | 1500*1188 | 1900*1450 | 5000*2200*2900 | 18 | 8-10. |
| WL-1800 | 75KW*2 | 36 | 400 | 1800*1188 | 2300*1450 | 5300*2150*3000 | 20 | 12-15. |
| WL-2000 | 90kw*2 | 24 | 450 | 2000*1188 | 2300*1500 | 5400*2150*3000 | 25 | 20-25. |
| WL-2200 | 110kw*2 | 28 | 240 | 2200*1578 | 3100*2500 | 6200*2700*3500 | 33 | 26-30 |
| WL-2400 | 132kw*2 | 24 | 240 | 2400*1678 | 3200*2600 | 7300*2800*3800 | 38 | 30-35. |
| WL-2800 | 185kw*2 | 28 | 260 | 2800*2000 | 3700*3000 | 7800*2800*3800 | 45 | 35-40 |
Tire steel wire debeader
To remove the thick steel from the rubber, to ensure that the uptime in operation, meanwhile to recycle the most steel wrie of the rubber.
| type | WL1200 | WL1600 |
| power | 11 kw | 22kw |
| capacity | 20-60 Pcs/h | 60-80 pcs/h |
| hook type | Single hook |
| cylinder | 1200 mm | 1600mm |
| weight | 2800 kgs | 3600kgs |
| size | 2800*900*1760mm | 3500*1100*1760mm |
Company Profile
Henan Walle Industry Co., Ltd
Walle industry is an industrial equipment manufacturer & trader from China, with over 16 years of rich experience and unique knowledge, We help our customers around the world solve a variety of problems from crushing and screening all the way through different materials, we have remained dedicated to our values and to providing material processing solutions that improve the lives of people around the world.
