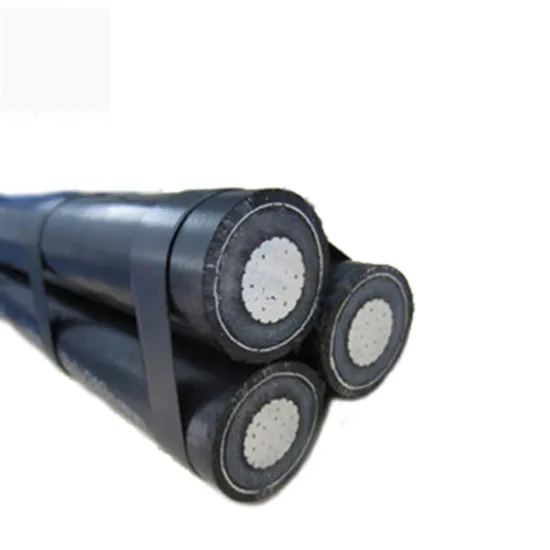

AAC ACSR AAAC Conductor XLPE PVC Insulated ABC Aerial Bundle Electrical Cable Overhead Cable Electric Wire Cable

Product Description

APPLICATION:
The product is a new type of aerial cable for power transmitting . It is extensively used in overhead power transmission line. It improves the safety and reliance of electrified wire netting . It is primarily used on lighting, outdoor lighting,and temporary service for construction . To be used at voltage of 600V phase-to-phase or less,and the conductor temperatures no exceed 75degred for polyethylene insulated conductors 90degree for crosslinked polyethylene (XLPE) insulated conductors.
CONSTRUCTION:
Conductors are concentrically stranded,compressed 1350-H19 aluminum. Insulated with either polyethylene or crosslinked polyethylene (XLPE). Neutral messengers are concentrically stranded 6201, AAC,or ACSR .
The product is a new type of aerial cable for power transmitting . It is extensively used in overhead power transmission line. It improves the safety and reliance of electrified wire netting . It is primarily used on lighting, outdoor lighting,and temporary service for construction . To be used at voltage of 600V phase-to-phase or less,and the conductor temperatures no exceed 75degree for polyethylene insulated conductors 90degree for crosslinked polyethylene (XLPE) insulated conductors.
Construction
Conductors are concentrically stranded,compressed 1350-H19 aluminum. Insulated with either polyethylene or crosslinked polyethylene (XLPE). Neutral messengers are concentrically stranded 6201, AAC,or ACSR .
Duplex service drop (Bare neutral messenger ACSR)

Code word	AWG or kcmil	Bare neutral messenger		Phase conductor		Weight kg/km
		ACSR stranding and wires dia. (mm)	Rated strength (lbs)	AAC	Insulation thickness (mm)
				Stranding and wires dia. (mm)
Setter	1*6AWG+1*6AWG	1/1.68+6/1.68	1190	1/4.11	1.14	111
Shepherd	1*6AWG+1*6AWG	1/1.68+6/1.68	1190	7/1.56	1.14	113
Eskimo	1*4AWG+1*4AWG	1/2.12+6/2.12	1860	1/5.19	1.14	171
Terrier	1*4AWG+1*4AWG	1/2.12+6/2.12	1860	7/1.96	1.14	173
Chow	1*2AWG+1*2AWG	1/2.67+6/2.67	2850	7/2.47	1.14	266
Bull	1*1/0AWG+1*1/0AWG	1/3.37+6/3.37	4380	19/1.89	1.52	427

---
