Everstar Telescopic Aerial Platform Truck Mounted 32m Aerial Work Platform

Product Description

PRODUCT OVERVIEW

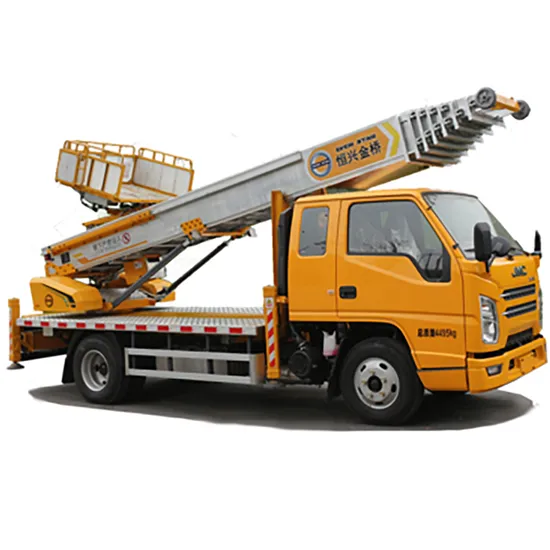

EVERSTAR HXE5040TBAJ6 LADDER TRUCK
Ladder truck is a special operation car that uses on-board ladder equipment to transport materials upstairs. It is suitable for high-altitude operation of buildings in large, medium and small cities. It has the characteristics of simple operation, strong flexibility, wide application range, high work efficiency, excellent performance and so on. It can be used for cleaning outside high-altitude buildings, furniture handling in high-rise buildings, high-altitude emergency maintenance operations, high-altitude equipment installation and other high-altitude operations.
The car is mainly used for :
project leasing,
curtain wall construction,
roof waterproofing,
solar energy installation,
advertising anti-aircraft guns,
power maintenance,
air conditioning installation,
moving companies,
cement and sand treatment,
ship maintenance,
road and bridge maintenance.

PRODUCT SPECIFICATIONS

Specification	Items
Overall Dimension	length	5995	mm
	width	1960	mm
	height	2850	mm
Weight	weight	4495	kg
	Passengers	(including driver) 2	People
Mainly techincal datasheet	Bucket rated weight	400	kg
	Bucket max height	32	m
	Maximum working span	13	m
	Outrigger Lateral span	Front3700/back3830	mm
	Outrigger Longitudinal span	4480	mm
Drive specification	Front/Rear suspension	1075/1560	mm
	Front/rear reach	0/0	mm
	Approaching/Departure Angle	20/13	°
	Max. Driving Speed	100	km/h
	maximum gradeability	30	%

Parts description	Details
Truck chassis	JMC JX1041TG26 chassis
Engine	JMC JX4D30B6H, Engine power: 85KW
Cab	JMC VI CAB,Fit 2 passages(including driver)
Bucket	Bucket baseplate dimension: 1150x1000mm
	Hoarding height: 380mm
	Bucket baseplate extendable dimension: 1950x1400mm
	Double hydraulic cylinder remote control angle adjustable bucket, remote control door opens close, with 800kw hydraulic power station
Boom type	7 sections of high-strength aluminum alloy ladder arms + 1 section of auxiliary ladder
Slewing type	±100° discontinuous rotation
Frame	BS700 high strength box frame
outrigger	Front V + rear V outrigger, BS700 high-strength steel box-type outrigger, built-in pipeline
Operation	Chassis equipped with a five-handle hydraulic valve group, and the outriggers are fully hydraulically driven both horizontally and vertically.
	The truck above chassis is equipped with a load-sensitive proportional valve, which can be operated purely manually.
	loading system with wireless handheld remote control, so the action of getting on the car can be operated remotely with one hand. The maximum remote-control distance is 200 meters.
	The bucket with 800W high-power hydraulic pump station, the luffing of bucket and the tailgate of the bucket can be remotely control.
Controller	Equipped with an intelligent controller, it can realize many intelligent functions such as automatic feeding, automatic deceleration, automatic positioning, and overload alarm.

PRODUCT CONFIGURATION

SALES AND SERVICE NETWORK

1.We provide 24-hour online service. 2.Provide new car Teaching.
3.With 22 domestic offices, the after-sales service system is perfect, providing systematic solutions for customers, and striving to create word-of-mouth services in the ladder car and aerial work vehicle industry.

Certifications

WHY CHOOSE US

1.Jiangsu Everstar International Trade Co., Ltd. is a national high-tech enterprise specialized in the research and development, production, sales, export and service of multi-functional slip-form paver, water well drilling rig, aerial platform truck, ladder truck, highway guardrail pile driver, solar pile driver, hydraulic earth auger, piling rig spare parts and other equipment.
2.Our company has an area of 40,000 square meters, factory area of 20,000 square meters and nearly 300 employees. Our product sales and market share have been far ahead in the industry.
3.We fully implement the standard implementation work, currently we have 4 invention patents, 51 utility model patents, 15 appearance patents, we strictly implement the ISO9001 standard management, we are the first one who adopts refined assembly line in our industry, all products have passed the CE certification. At the same time, we have passed the strict national environmental protection certification- China Quality Certification Center Products Mandatory CCC Certification.

FAQ

1.What's your payment link?
There are 2 solutions, first you pay 30% advanced payment, balance pay before shipment. second 30% advanced payment, balance pay by L/C.
2.What chassis do you use?
We use JMC JX1041TCD26 chassis.
3.Can you provide double row seats?
We can design double row seats for you according to your needs.
4.Is your car fully automatic?
Yes, our car is fully automatic and equipped with a remote control.
If you have any needs, please feel free to contact me.

---
