US$4,100.00-4,600.00
|
1 Piece
(MOQ)
|
Basic Info.
Spindle Number
Single-Spindle
Table
Vacuum Adsorption Table
Guide Rail
Taiwan Hiwin Square Guide Rail
Transmission
Helical Rack
Spindle Power
Water Cooling Spindle
Lathe Bed
T-Shape Heavy Duty Bed Structure
Application
Wooden Industry
Transport Package
Plywood Package
Specification
1300*2500*200mm
Product Description

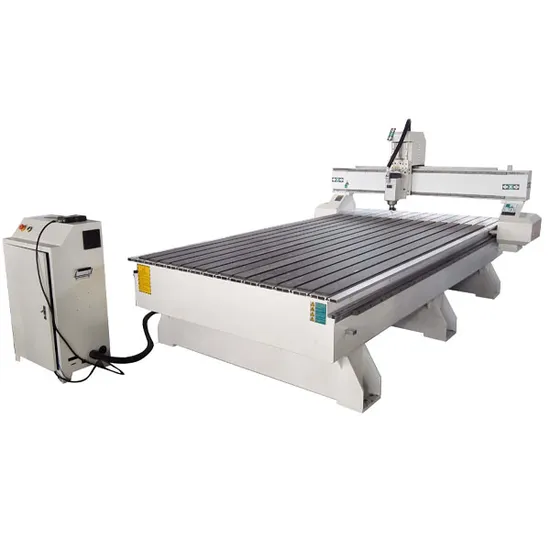

Jinan cnc router machine for wood, MDF
Feature:
1 Welded steel bed structure , when working its more stable.
2 Vacuum adsorption table can hold the material, improving the working precision.
3 Sunfar brand inverter
4 DSP control system
5 Water cooling spindel .
6 TaiWan high precision HIWIN square guide rail, improving working accuracy.
7 Stepper motor working mode
8 Transmission by helick rack
9 TaiWan TBI Ball Screw
10 Servo motor and SYNTEC control system is optional
Specification:
| Model | ZK 1325 CNC router |
| X,Y,Z Working Area | 1300*2500*200mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z repositioning Positioning Accuracy | ±0.02mm |
| Lathe Structure | Thick wall square tubes welding bed |
| X Structure | Taiwan HIWIN square guide rails |
| Y Structure | Taiwan HIWIN square guide rails |
| Z Structure | Taiwan TBI ball screw |
| Max.Speed | 0-30000mm/min |
| Max.Working Speed | 0-25000mm/min |
| Spindle | water cooling spindle |
| Spindle Speed | 6000-24000RPM |
| Working Mode | Stepper motor |
| Working Voltage | 380V/3ph
50HZ/60Hz for standard machine, if optional vacuum system or servo system, it need 380V 3 phase |
| Command Code | G code(*uoo,*nc,*mmg, *plt) |
| Operating System | Ncstudio control system or DSP control system( also can choose LNC or SYNTECH control system, it depends on your requirement) |
| Interface | USB |
| X,Y Working Delicacy | <0.01mm |
| Software | Type3 software or Wentai software |
| Running circumstance | Temperature: 0°C~45°C |
| Waranty | One year |
| Delivery time | 2 weeks |
