Plastic Water Bottle PC 5 Gallons Blow Molding Machine

Product Description

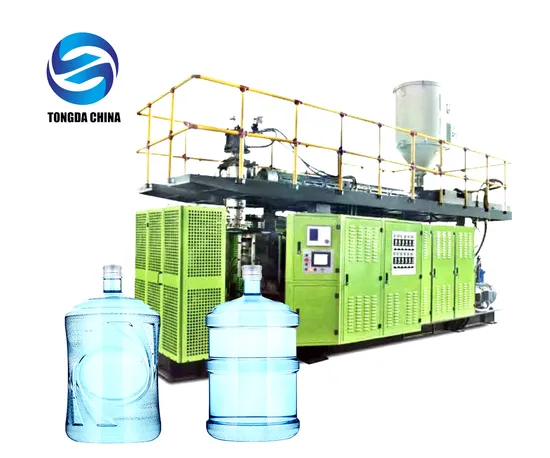

Plastic Water Bottle PC 5 Gallons Blow Molding Machine Extrusion blow molding machine for 5 gallon PC barrel
Mode: YD82PC
The blow molding machine YD82PC is specially designed for the production of PC pure water bucket. It can also produce various hollow blow molding products made of PC such as lampshades, bottles, pots, cans, barrels etc. This machine is very suitable for PC material extrusion blow molding. The actual production speed can reach 60pcs/h (for 5 gallon pure water bottle with handle, the actual production speed is 52pcs/h).
Basic installation including Die head: special center feeding die head Extrusion system: Adopt imported automatic temperature controlling device. Drive the screw with motor reducer to realize stepless regulating Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder. Blowing device: with bottom blowing type Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle. Electric controlling system: Adopt Panasonic brand PLC. Every electric component is in famous brand.
Technical data and parts instructions of blow molding machine for series of YD82PC (the specification is only for your reference)

1	Product max volumes	20L
Extrusion system
2	Diameter of screw	Ø82mm
3	L/D	25:1 (30:1, 33:1 optioanl)
4	Screw rotation speed	10-50 rev./min.
5	Plasticizing capability	60 seconds/mold
6	Barrel heating zone quantity	4
7	Barrel heating power	34KW
8	Max. ejection volume	1.5L
Die head system
9	Max. die diameter	130mm
10	Die head heating zone quantity	4
11	Die head heating power	8.7KW
Clamping system
12	Mold platen dimension (W×H)	740mm×520mm
13	Clamping mold stroke	330mm-780mm
14	Clamping force	200KN
Bottom blowing device
15	Blow pin up and down stroke	120mm
16	Blow pin manual up and down stroke	80mm
Robot (Take out device)
17	Taking stroke	1000mm
Frame
18	Lifting stroke	250mm
Hydraulic system
19	Big pump rated pressure	14Mpa
19	Big pump rated flow	180L/min.
20	Hydraulic pump motor power	12KW
Hydraulic system for parison thickness controller
21	Rated pressure	6Mpa
22	Rated flow	22L/min.
23	Hydraulic pump motor power	4KW
Pneumatic system
24	Air pressure	0.7Mpa
25	Working pressure	0.6Mpa
26	Air consumption volume	0.4 M3 / min.
Water source
27	Water supply pressure	0.3Mpa
Power source
28	Voltage	AC380V±10%
29	Frequency	50HZ
30	Wire	3 phase 4 wire
31	Total rated power	88.2KW
32	Average consumption	45KW/h
Machine basic information
33	General dimension (L×W×H)	5.3×2.7×4.4m
34	Weight	9Ton

Components

Item	Technology content
1.Hydraulic system	Oil pump: Double vane pump YUKEN Hydraulic valve: YUKEN or TAICHENG Proportional valve: HNC Servo valve: MOOG (Japan MOOG system) Oil-way pressure control: Proportion pressure control Seal element: Hansheng (Taiwan)
2.Electronic system	PLC: PANASOIC (Japan) Contactor: TE (France 1Schneider) Relay: OMRON (Japan) Proximity switch: Kaifang (Taiwan) Electric ruler: NOVOTECH (Germany) Light curtain senor: Sensorc Thickness servo control: MOOG (Japan) Air switch: Meilan (France) Touch screen: OMRON (Japan)
3.Clamping system	Form:hydraulic clamping directly, Two-way synchronization institutions drive form:differential motion quick Clamping, Two-rod structure g, Content model in a large space.
4.Die head system	Die structure: Central feeding type Runner form: Continuous type Material of main runner part: 38CrMoAlA;42CrMo
5.Extrution system	Drive form: Oil motorg Material of barrel and screw: 38CrMoAlA Heater: Casting-aluminum heating device Cooling fan: Shanghai Huanqiu
6.Pneumatic system	Main air valve: AIRTAC (Taiwan) / 1FESTO(Germany)
7.Take out device	Air cylinder: 1FESTO(Germany)
8.Motor	Siemens BEIDE motor

Founded in 1970, Yuanda Group is committed to research and development and production of plastic molding equipment,Such as the Extrusion blow molding machine , PET blow molding machine ,Injection blow molding machine (IBM machine), Injection molding machine ect. including the peripheral equipment , such as refrigeration equipment and power generation system equipment. With more than 29 years old working expereice , we can offer the whole equipment for customer plastic factory produce complete project,and strong technical support and advanced complete sets of equipment for many customers in China and overseas.
Our Blow molding machine with best quality in China, due of our strong technical in this field. all important moving parts, we will study and check by computer simulation ADAMS and finite element analysis by ANSYS, advanced techincal in this field industry.so our machine with long life , win more and more good reputation from oversea.

assemblying machine , every process will be inspected by special person ,all work flow according to ISO9001 standard.our blow molding machine is best quality than others , because of our special manufactur process and best material , such as the following pictures.
Our Certification

The whole service flow is divided in pre-sale stage, manufacturing stage, installation stage and after sales service. Good communication and best advanced technical support for every customer, we always find out the best project for every customer .
Workflow Process
Our Advantages
Yuanda Group can supply the best complete line according to client product requirement
1. Advanced servo system , Moog valve from Japan , high precision and high speed , save energy and high efficient
2. Act as optional , client can choose the 3D manipulator, in order to reduce labor cost and improve production efficienty
3. Advanced hydraulic cylinder , all technical sourced from Germany , floating adjustable movement , quickly speed and quiet
4. Machine can connect with the leak tester in line , convenience , save labor cost
5. Heater cover material stainless steel with ceramic heater inside , safty , long life and energy saving 30%
6. Oil pump from USA , mainly parts from Europe, best quality

7. Flex arm clamping enhance template structure, strong Power , high precision !
8. Servo motor from Physis Italy , high speed , save energy and high efficient
9. Color control touch screen with Moog parision from Japan , more convenient operation ,with remote control module , we can remote debugging ,modify and maintain on line , it is very easy for client to solve all problems .
10. Machine can connect with the conveyor in line directly, convenience , save labor cost, save space
11. Hydraulic system and valves from Yuken Industry Japan
12. Aviation military-grade wire connector , stable ,safe and easy to install
Yuanda Group has gained huge trust from international customers based on providing high quality blow molding machines and perfect aftersales service. Yuanda machines have been delivered to America,Poland,Mexico,Colombia,Peru,Argentina,Chile,Indonesia,Malaysia,Vietnam,Saudi Arabia, South Africa,Egypt and so on.
about many other advanced technical data, please require me !
Due to the company's fast technology update and technical confidentiality,for blow molding machine,Extrusion Blow Molding ,Injection blow molding machine ,PET blow molding machine , injection molding machine , blowing mould,plastic bottle making machine,plastic bottle mould ,bottle machine , relevant advanced technical parameters must be consulted our sales engineers. 500ml 1L 2L 3L 4L 5L Single Head With Double Stations Plastic Extrusion Blow Molding Moulding Machine Of Lowest Price

---
