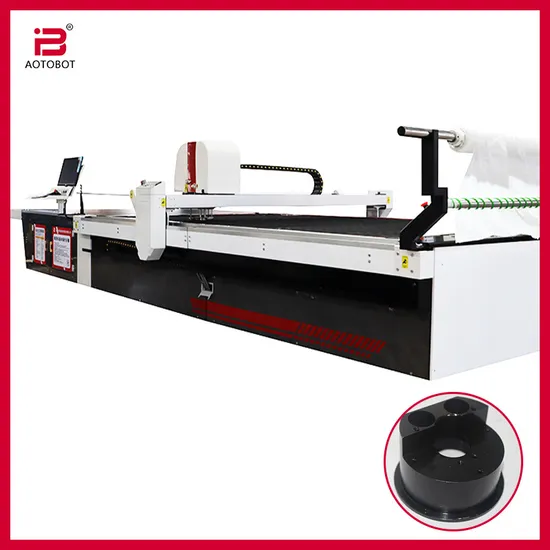

Heavy Duty Car Seats Automatic Multilayer Cutting Machine with 380V 22kw

US$49,000.00-58,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
T1691
Power Source
Electric
Automatic Grade
Automatic
Warranty
1 year
Certification
CE, ISO
Cutting Width
1600
Cutting Length
9000
Maximum Cutting Height
30mm
Speed
Top Speed 60m / Min
Weight
3000kg
Transport Package
Wooden Case
Specification
2100*2130*1200mm
Trademark
aotobot
Origin
Zhejiang, China
HS Code
8451500000
Production Capacity
10000/Year

Product Description

Product Parameters
T1690 Targeting industry Outdoor Tents , Yachts
Machine typeT1691Remarks
FeatureName AOTOBOT
Cutting width1600
Cutting length9000
Maximum Cutting height30mm
Cutting specificationMethodsStraight knife reciprocating clipping
KnivesAutomatic sharpening, Knife width 8mm Thickness 2.0, 2.5mm
SpeedTop speed 60m/min
Accuracy± 1mm
DrillsSolid 1.6, 2, 3mm
Machine specificationOutside dimensions of machinelength width and height 2100*2130*1200mm
Vacuum methodseparate frequency conversion adsorption
Operate the computerpc desktop computer
System specificationlanguageChinese ,English
Power Three phase 380V , 22KW
OthersCompressed air-20KP
Standard colorWhite
Weight3000KG
OptionSelection, Knife cooling, Device movement
Product Description
Specification
Automatic covering film
Automatic positioning and drilling
Automatic cleaning bristle device
Automatic air float linkage device
Automatic indicator for grinding and blade changing
Separate vacuum pump and multi-section control
Automatic indicator for fault detection
The cutting machine can move transversely to meet multi-lines of cutting work areas.etc Function Feature
Vacuum
The vacuum adsorb pressure is stronger , exhaust decompression and cooling Chamber design
New crankshaft
New crankshaft cutter cutting conveyor , lower noise , higher cutting strength ,less vulnerable parts
Double blade plate
Double blade plate design , more stable cutting accuracy , more accurate cutting of lightand thin impermeable fabrics Company Profile
ZHEJIANGBOPAIINTELLIGENGTTECHNOLOGYCO.,LTD is high-tech company, which is specialized in intelligent cutting equipment design, research, and sales. With introducing foreign advanced technology and incorporating own experience in cutting field for many years, AOTOBOT has becomes the complete solution manufacture. It supplies CAD, spreading machine, smart cutting machine for soft material cutting industry. The company's products have been used from traditional textiles and clothing to the outdoors. car home furnishing. sofa seat, medical treatment, industrial textile industry and other fields. And successfully developed cutting technology for glass fiber, aerospace materials, bulletproof materials, synthetic materials. The company's products are all over Germany, the United States. The company's product has been sold to Germany, United states, Brazil, Vietnam, Cambodia, India, Kazakhstan and other countries. Also established branch in Vietnam. With rich experience and R&D ability, AOTOBOT could provide customized service and personalized product. also it supplies systematic cutting solution. Has invested enormous amount of energy on intelligent factory automation, AOTOBOT hugely promotes production efficiency and solve factory intelligence problems for customer factory Our aim is to create reliable products with professional technology and win the recognition of users with good after-sales service. Business philosophy: Integrity and cooperation, and win-win future. Corporate culture: unity, diligence, refinement, and innovation. Future development, we will open. more intelligent cutting custom era.
FAQ
Q1. Are you a factory or a trading company?
(ZHEJIANG BOPAI INTELLIGENT TECHNOLOGY CO., LTD.)is a national high-tech enterprise specializing in the design, research and development, production, sales and service of intelligent cutting equipment. We have more than 15 years of manufacturing experience, and our products
were exported to more than 80 countries and regions.
Q2. Where is the advantage of your machine ?
Our cutting system technology developed from Japan since 40 years ago, till now , we have sold to
More than 40 countries.
Aotobot brand cutting machine equipped with all the specifications . Bopai company appled the Patent of double knife plate which hugely improved the cutting speed by double time. Aotobot equipment supply YASAKAWA motor and drive system,
Adsorption device, bristle cleaning automatically,air cooling system, knife intelligence technology etc.
Q3. how about the installation and after sale service?
A: we have one strong and professional after sale service team,all the engineers with more than 10 years experiences. We can send technical to supply training and installation. Also we have distributors in all over the world, which also can take care of the after sale service daily.
Q4. How do you guarantee your quality?
A: With more than 40years of manufacturing experience, our products are
superior to the domestic standard and meet the Japan standard. All the main device are
Importing from Japan . machines run well without confusion on problem.
