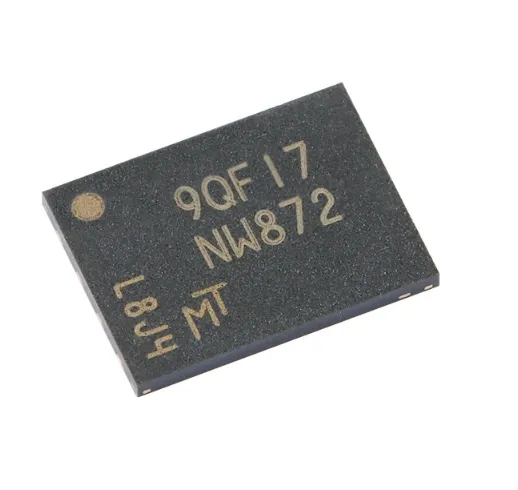

MT29F1G01ABAFDWB-IT:F FLASH 1GBIT SPI IC SLC NAND Flash Memory MT29F1G01ABAFDWB

Product Description

description MT29F1G01ABAFDWB-IT:F : NAND Flash SLC 1G 1GX1 UPDFN IT M78A
Mfr. Part#: MT29F1G01ABAFDWB-IT:F
Datasheet: (e-mail or chat us for PDF file)
ROHS Status:
Quality: 100% Original
Warranty: ONE YEAR

Mounting Style:	SMD/SMT
Package / Case:	UPDFN-8
Series:	MT29F
Memory Size:	1 Gbit
Interface Type:	SPI
Organization:	1 G x 1
Timing Type:	Asynchronous
Data Bus Width:	1 bit
Supply Voltage - Min:	2.7 V
Supply Voltage - Max:	3.6 V
Supply Current - Max:	35 mA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Packaging:	Tray
Active Read Current - Max:	35 mA
Maximum Clock Frequency:	133 MHz
Moisture Sensitive:	Yes
Product:	NAND Flash
Product Type:	NAND Flash
Factory Pack Quantity:	1920
Subcategory:	Memory & Data Storage
Unit Weight:	0.289176 oz

Serial peripheral interface (SPI) NAND is an SLC NAND Flash memory device that provides a cost-effective nonvolatile memory storage solution where pin count must be kept to a minimum. It is also an alternative solution to SPI NOR, offering superior write performance and cost per bit over SPI NOR. The hardware interface creates a low pin-count device with a standard pinout that remains the same from one density to another and supports future upgrades to higher densities without board redesign. The serial electrical interface follows the industry-standard serial peripheral interface. New command protocols and registers are defined for SPI operation. The command set resembles common SPI-NOR command sets, modified to handle NAND specific functions and additional new features. New features include user-selectable internal ECC and first page auto-load on power-up. SPI NAND Flash devices have six signal lines plus VCC and ground (GND). The signal lines are SCK (serial clock), SI, SO (for command/response and data input/output), and control signals CS, HOLD#, WP#. This hardware interface creates a low pin-count device with a standard pinout that remains the same from one density to another, supporting future upgrades to higher densities without board redesign. Each block of the serial NAND Flash device is divided into 64 programmable pages, each page consisting of 2176 bytes. Each page is further divided into a 2048-byte data storage region and a 128-byte spare area. The 128-byte area is typically used for memory and error management functions. With internal ECC enabled as the default after power on, ECC code is generated internally when a page is written to the memory core. The ECC code is stored in the spare area of each page. When a page is read to the cache register, the ECC code is calculated again and compared with the stored value. Errors are corrected if necessary. The device either outputs corrected data or returns an ECC error status. The internal ECC can be configured off after device initialization. Contact Micron representative if ECC is required to be default off after power on. The first eight blocks are valid when shipped from factory. Security functions are also provided including software block protection: Lock tight and hardware protection modes avoid array data corruption.
Applications
• Digital TV power supply
• High definition Blu-ray™ disc players
• Networking home terminal
• Digital set-top box (STB)
• Surveillance



Certificates
Product Packing details
Why choosing us
Located in Shenzhen, the electronic market center of China. 100% guarantee components quality: Genuine Original. Sufficient stock on your urgent demand. Sophisticated colleagues help you solve problems to reduce your risk with on-demand manufacturing Faster shipment: In stock components can ship the same day . 24 Hours service
Notice:
Product images are for reference only. You can contact sales person to apply for a better price. For more products inquiry, Pls do not hesitate to contact our Sales team.

---
