Vertical Cooling Mixer SRL-Z300/600 SRL-W800/2500 Plastic PVC Calcium Powder High Speed Mixer WPC Spc Flooring Turbo Mixer Coloring Mixer Drying Mixer

Product Description

Product Description
The PVC high speed mixer is for mixing PVC powder, CACO3 and other addictives. This equipment is widely used for material preparation in PVC pipe and profile, SPC flooring, cables production, etc.

The PVC mixer is composed of high speed mixer (hot mixer), cooling mixer and control cabinet.

We use 6-8mm stainless steel SUS304 for the internal wall construction with fine polishing. It will guarantee the mixer could use for long time under the high friction.

The mixing blades are passed the static and dynamic balance testing. And the main shaft adopts fine sealing to prevent material leakage.
Top brands electric components such as Siemens, ABB, Omron are used for the control system, as well as quality pneumatic elements . Simens touch screen and PLC control is available for your special requirements

If you need the PVC mixer, please tell us what kind of products you produce and the output you expected per hour, we will recommend the right model for you.

High quality, good price and reliable performace.
Main Technical Parameter ( Vertical Cooler) for your reference:

Model	SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000	SRL-Z800/1600
Total volume (L)	100/200	200/500	300/600	500/1000	800/1600
Effective Volume (L)	65/130	150/320	200/360	375/650	600/1024
Rotating Speed (RPM)	650/1300-180	475/950-87	475/950-87	430/860-60	357/714-50
Mixing time (Min.)	8-10	8-10	8-12	8-10	8-12
Motor power (KW)	14/22-7.5	30/42/11	40/55/11	55/75/15	83/110/22
Overall dimension(mm)	2500*2000*2200	4580*2240*2470	4800*2640*2480	5600*3000*3100	6230*4230*4480
Weight(kg)	2500	3600	4500	5800	8300

Horizontal Cooling Mixer models

Model	Capacity (L)	Effective Capacity (L)	Blade Rotating Speed (RPM)	Motor Power (KW)	Capacity (kg/batch)
SRL-W500/2000	500/2000	375/1200	430/860-80	55/75-18.5	150-170
SRL-W800/2500	800/2500	560/1500	357/714-80	83/110-22	240-260
SRL-W1000/3500	1000/3500	700/2000	325/650-80	110/160-37	300-330
SRL-W1300/4500	1300/4500	910/2450	300/600-80	132/200-37	400-450

Detailed Photos

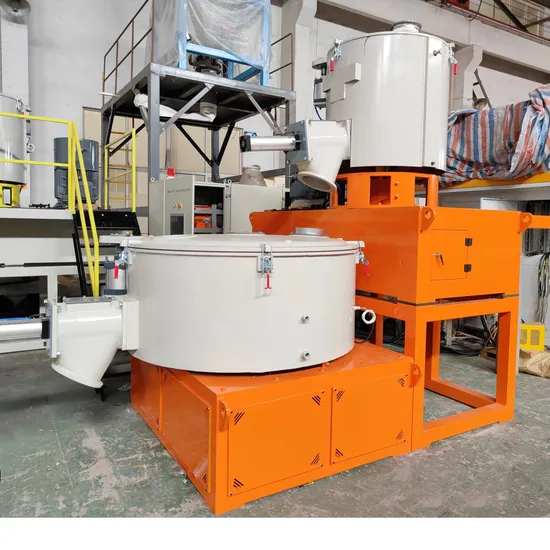

SRL-Z500/1000 PVC High Speed Mixers
Mixer Blade
High Speed Mixers (SHR-2000) SRL-W800/2500 PVC High Speed Unit with horizontal cooling mixer
Screw Feeder and vacuum feeder system are available for your selection. The vacuum feeder could save feeding time and with dust filter to reduce dust in the workshop. The dryblend could be feed into transition silo by screw feeder.
(Installed in customer's factory)
We also recommend PVC Additives Auto Weighing System for you:
The small additive auto weighing system - We developed this auto weighing system especially for PVC pipe and profile production to instead of manual weighing. It could auto weigh the additives in PVC pipe and profile formula besides the PVC and CACO3. The operator could only manually weigh PVC and CACO3, for other powder additives, this auto weighing system could weigh the quantity for one batch use automatically. This system could avoid the mistake of manual weighing and also keep the workshop clean.
This system could auto weighing 6-10 kinds of powder or granules additives.
We have rich experience in the PVC auto weighing, mixing and conveying system for PVC pipe and profile, WPC, SPC flooring mass production.
It could save labor, reduce manual mistake, reduce dust, increase production efficiency. All the complete system could be controlled by Siemens PLC. We offer touch screen control or computer control system. The system could auto weigh PVC, Calcuim, and other addtives according to formula, and auto mix and discharge, then feed into extruders. Welcome to contact us if you are interested.
Control System
Feeding System to extruders
Auto Weighing & Mixing System installed in customer's factory
Flow chart for one SPC flooring customer Company Information Zhangjiagang Sunrise Machinery Co., Ltd. is specialized in manufacturing kinds of plastic machines. Sunrise Machinery is located in Zhangjiagang City, Jiangsu Province, 150km away from Shanghai.
We have more than 15 years experince in this field. With CE standard and rich experince, Sunrise Machinery will be your reliable supplier for plastic machines. We warmly welcome friends from all over the world to visit our factory.

---
