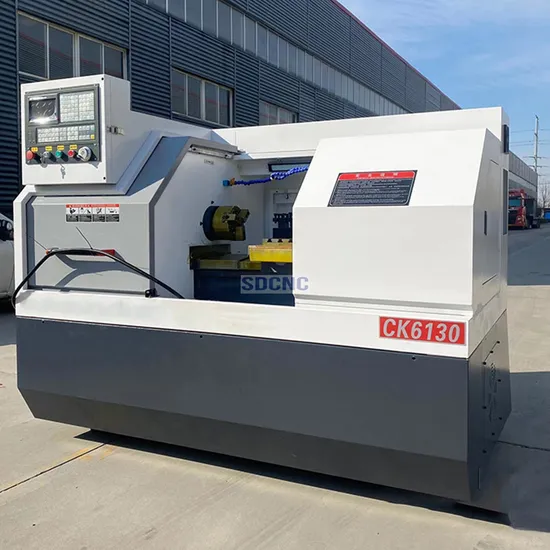

Ck6130 High Precision Automatic Light Duty Metal Processing CNC Lathe Machine

Product Description

Feature: CK6130 Cheap China automatic turning cnc metal lathe for sale using the GSK controller system to realize the Two - axis Control .The use of FANUC, Siemens, KND and other systems; with less noise, high precision, excellent performance characteristics, the CNC machine tools using mechanical and electrical integration design. Beautiful appearance, reasonable structure, wide range of uses, easy to operate. The machine can be automatically controlled, can automatically process a variety of parts of the first round, end, slot, any cone, spherical, and a variety of British and English cylindrical, tapered thread. SPECIFICATIONS

	project		unit	CK6130
	Max. swing dia. over bed(mm)		mm	Φ300
	Rail span in X direction		mm	160
	Rail span in Z direction		mm	240
	Max. Swing dia. over slide		mm	Φ100
	Top distance		mm	350
	Maximum turning length		mm	230
	Center high	Distance from bed	mm	150
		from the ground	mm	1065
	Diameterspindle through hole		mm	Φ48
	Bar diameter		mm	Φ45
	Equipped with hollow chuck tie rod through hole		mm	Φ40
	Spindle end type			A2-5
	Chuck		mm	6'
	Spindle taper hole taper		No	chuck
	Spindle maximum speed		rpm	2500
	Number of tool rows			3
	CNC system			Syntek 6TA
	Lead screw model	X axis	mm	FDC2506-P3
		Zaxis	mm	FDC3210-P3
	X/Z rapid movement speed		m/min	6/10
	X-direction travel		mm	280
	Minimum setting unit		mm	0.001
	Main engine power		KW	5
	Total power		KW	10
	Weight		Kg	1700
	Dimensions (L× W × H)		mm	2200×1160×1620

---
