US$2,100.00-2,200.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Operation Microscope
Number of Cylinder
Binoculars
Stereoscopic Effect
Stereoscopic Effect
Kind of Light Source
Ordinary Light
Principle of Optics
Optical
Function -1
an Intensifying Red-Reflex Module
Specification
CE, FDA, ISO9001
Production Capacity
10000sets/Year
Packaging & Delivery
Package Size
82.00cm * 63.00cm * 50.00cm
Package Gross Weight
45.000kg
Product Description

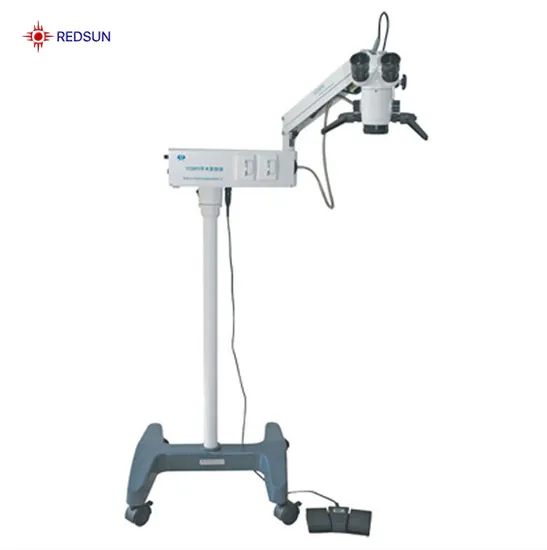

ophthalmic Operation microscope
YZ-20P5
Technical Data
The product is a simple coaxial illumination operation microscope for one man. It is portable, compact and applied in mobile hospital
Characteristics:
All the lenses are multi-coated, mildewproof and anti-reflective.
Optional objectives: F250/f300/f350f/f400.
Column stand can be reflitted to holding stand. It can also be customized according to various operation requirements.
Eyepiece Magnification
| 12.5×
|
Objective Lens
| f=200
|
Working Distance
| 190mm
|
Magnifications for Main Microscope
| 5.3×,8×,12×
|
Diameter of Field
| F37mm,F25mm,F16.7mm
|
Diopter Adjustment
| ±7D
|
Pupil Distance
| 50mm~80mm
|
Maximal Resolution
| 100LP/mm
|
Illumination Source
| 12V/100W,medical cold reflection halogen lamp
|
Illumination Type
| 6°+0°Coaxial cold light source illumination
|
Coaxial Illumination
| ≥30000lx
|
Reaching Radius of Arm
| 870mm
|
Adjustable Vertical Range
| 700mm~1100mm
|
Fine Focusing Range
| 30mm
|
Input Voltage
| AC220V±22 V / 50Hz±1Hz,AC110V±11V /60Hz±1Hz
|
Power
| 120VA
|
Fuse
| AC250V T1.25A ,AC125V T2.5A
|
Electrical Safety Standard
| Executive Standard: GB9706.1-2007,type I
|
Packing Volume
| 0.2m3,1carton
|
Total Weight
| 41kg
|
>>
