US$4,000.00-6,000.00
|
1 Set
(MOQ)
|
Basic Info.
Controlling Mode
Horizontal Automatic
Automatic Grade
Automatic
After-sales Service
24hours Services
Saw Wheel Lift Motor
0.18kw
Hydraulic Pressure
55kg/Cm2
Distance of Blade to Worktable
3-200mm
Saw Blade Size
4330*50*0.7mm
Overall Size
2400*2200*1650mm
Transport Package
Woodcase Packing or Film Packing
Specification
2400*2200*1650mm
Production Capacity
500sets/Years
Product Description
Parameter

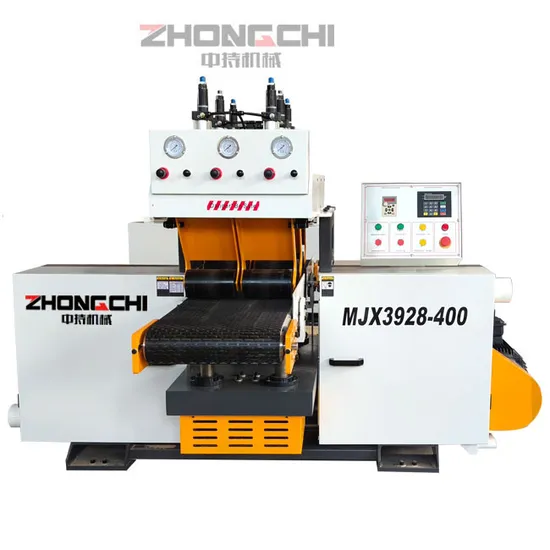

| MJB3928-400
| MJB3928-500
| MJB3928-650
|
Max processing size
| 400*200mm
| 500*200mm
| 650*200mm
|
Max.cutting width
| 400mm
| 500mm
| 650mm
|
The Wheel diameter
| 600mm
| 700mm
| 700mm
|
Speed of the feed
| 0-14m/min
| 0-14m/min
| 0-14m/min
|
Motor power
| 15kw
| 18.5kw
| 18.5kw
|
Hydraulic pressure
| 60kg/cm2
| 60kg/cm2
| 60kg/cm2
|
Machine Dimensions
| 2400*2200*1700
| 2400*2100*1800
| 2400*2300*1800
|
Weight
| 1700kg
| 1800kg
| 1900kg
|
Why to choose Zhongchi?
•Professional: There are high quality woodworking machinery more than ten years experiences, such as Sanding Machine,Planing Wood Sanding Machine,Lock Jointing Machine,Cold Press Series,Hot Press Series,Frame Combination Machine Series etc.
•Excellent: ISO9001 certificated.
•Economic: We offer the good price with great quality ,cause of high-volume production manufacturer
•Location: It gets to Qingdao port in one hour.
FAQ: Q1: What is the brand name of the Machine?
A1: The brand name of the Woodworking Machine is Zhongchi Brand
Q2: Where is the Woodworking Machine manufactured?
A2: The Woodworking Machine is manufactured in Qingdao,China.
Q3: Is the Woodworking Machine certified?
A3: Yes, Have CE certification.
Q4:I am a fresh man for this machine,what kind of machine I should choose?
A4:Very easy to choose, just tell us :
1. the work you want to do ?
2. the maximum size of your material ?
then we give you perfect solutions and suggestions.
Q5:When I got this machine, but I did not know how to use it,What should I do?
A5:We will send tutorial video and English version manual with the machine, If you still have some doubts,we can talk by telephone or Video. Or even send our engineers oversea to help you.
Q6:If some problems happened to this machine during warranty period,what should I do?
A6:We will supply free parts in machine warranty period if machine have some problem, While we also supply free after-service,so any doubts, just let us know, we will give you solutions.
Q7:What is the MOQ?
A7:MOQ for our products is 1 set machine, we could send it to the nearest port to you.
>>
