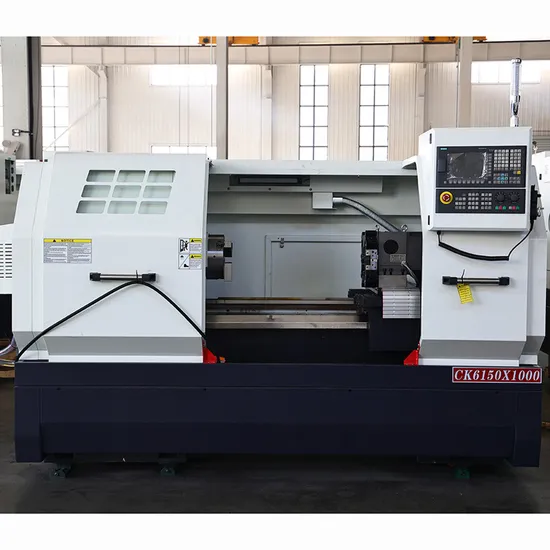

Automatic CNC Lathe Machine with D11 Spindle End Form Design

Product Description

Product Description
The CNC lathe is a cornerstone in the realm of CNC machine tools, celebrated for its versatility and precision. It excels in cutting both inner and outer cylindrical surfaces of shaft and disk parts. Whether you're dealing with conical surfaces of any angle, intricate curved surfaces of revolution, or threading cylinders and cones, this machine handles it with finesse. Additionally, it adeptly performs grooving, drilling, reaming, and boring, delivering exceptional results every time.
Advantages
Enhancinglabor efficiency and elevating processing quality; Boost productivity while ensuring superior processing quality;
Accelerate production preparation and lower the technical skills required for operators.
Features
Remarkable processing precision and consistency in quality; Facilitates multi-coordinate linkage, enabling the precision machining of complex shapes; Adaptability shines when part designs change, often necessitating only a simple NC program update, significantly cutting down preparation time; The tool boasts high precision and rigidity, allowing for optimal processing doses, thus maximizing productivity; The machine's advanced automation significantly reduces operator workload. Detailed Photos

Product Parameters

Item	unit	ck61100
Maximum turning diameter of the bed	mm	φ1000
Maximum turning diameter on the pallet	mm	φ630
Maximum processing length	mm	1500/2000/3000
Spindle drive form	/	Fourth gear
Spindle speed series	/	stepless speed change
Spindle speed	r/min	30-84/53-150/125-350/300-835
Spindle end form	/	D11
Spindle hole front taper	/	Metric120 1:20
Spindle through hole diameter	mm	105
X/Z axis positioning accuracy	mm	0.025/0.03
X/Z axis repeat positioning accuracy	mm	0.01/0.015
Workpiece machine accuracy	/	IT6-IT7
Work surface roughness	/	Ra1.6
X fast moving speed	mm/min	4000
Z fast moving speed	mm/min	6000
Tailstock sleeve diameter	mm	100
Tail sleeve inner hole taper	/	MT6
Tailstock sleeve movement	mm	250
Tool holdor form	/	Electric 4-station (optional horizontal 6-station)
Ball screw diameter*pitch	mm	X:30*06 Z:50*10
Tool size	mm	40x40

Packaging & Shipping

Company Profile
Henan Rowdai Machinery Equipment Co., Ltd is strategically based in Zhengzhou, the heart of China. With our extensive experience in exporting machinery, we ensure not only consistent quality products for our clients but also superior service. Our expertise extends across a wide range of machine tools, making us a reliable supplier in the global market. We provide an array of machine tools, including Lathe Machines, CNC Lathe Machines, Milling Machines, CNC Milling Machines, CNC Machining Centers, Grinding Machines, and more. Our selection spans Hydraulic Presses, Bending Machines, Drilling Machines, Press Brakes, Shearing Machines, along with essential machine tool accessories. Backed by a team of seasoned engineers with years of experience, we are equipped to offer comprehensive support. Our professionally trained engineers not only ensure quality inspection pre-shipment but also meticulously manage all stages of the production process. Our repertoire includes MILLING, DRILLING, TURNING, BAND SAWING, FORGING PRESS, and METAL FORMING solutions. We invite you to reach out and connect with us! Our engineers offer invaluable support by inspecting goods prior to shipping and overseeing every link in the production chain on behalf of the company. Contact us to discover how we can meet your machining needs!
MILLING/DRILLING/TURNING/BAND SAWING/FORGING PRESS/METAL FORMING
WELCOME TO CONTACT WITH US!

---
