Hystou Ordinateur Portable Mini Computer Dual LAN I7 10th CPU Fanless PCS Mini Industrial PC

Product Description

Product DescriptionFanless Mini Computer 10th Intel Core I3 I5 I7 Dual LAN Desktop Industrial Mini PC
The HYSTOU H7-10th mini computer is a compact powerhouse, delivering robust performance and ample storage tailored exclusively to industrial needs. Its exceptional capabilities cater to diverse requirements, optimizing control room space, supporting on-site operations, and seamlessly connecting multiple industrial devices. Experience a wide array of distinctive features designed for factory floors, production lines, and manufacturing environments.
Highlighting the Fanless Industrial PCThis Windows 11 Desktop PC featuring Core i7-10610U Processors offers exceptional computing power in a compact mini ITX form factor. The H7-10th fanless industrial PC serves as an optimal solution for compute-intensive tasks, serving as an industrial workstation, cloud aggregator, or edge server.Enhanced DDR4 Memory: Experience heightened performance with configurable DDR4 memory, supporting up to 64 GB. This mini industrial computer fosters work efficiency and delivers a seamless user experience.Versatile I/O Connectivity: Effortlessly connect your preferred devices with a comprehensive array of external interfaces, including 2 RJ45 LAN ports, 2 HD Display Ports, 2 RS232 COM Ports, and 8 USB Ports (4 USB 3.0, 4 USB 2.0).Internal Expansion Capabilities:Unlock remarkable versatility with expansion options such as a mini PCIE port for optional 3G/4G WIFI modules (not included by default), a SIM Card slot (not included by default), and high-speed M.2 storage drive.Mounting Flexibility: Adapt seamlessly to various applications and environments with wall and VESA mounting options. Built-in industrial ruggedness ensures reliability in challenging conditions.

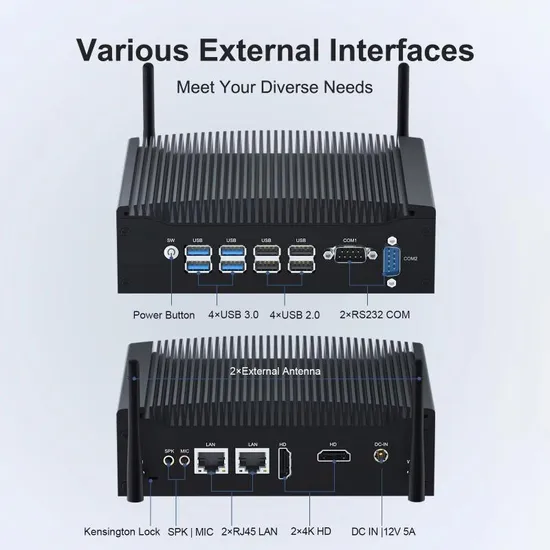

Effortless Integration for Office, Entertainment, and Industrial Needs17-Port Versatile Integration HubThis mini computer is a compact powerhouse with 17 versatile ports,effortlessly connecting devices for office, entertainment, or educational use. Featuring 4 USB 3.0, 4 USB 2.0, 2 HDMI, 2 Gigabit Ethernet Ports, 2 RS232 COM Ports, 1 3.5mm SPK/MIC Port, 1 5.5mm DC connector, and 1 Power port, it caters to diverse connectivity needs. Ideal for personal, industrial, or commercial applications, it comes with power LED, a power button, and a reset button. Plus, our complimentary VESA bracket ensures convenient wall or monitor mounting.
Efficient Cooling, Dual WiFi, and Lifetime AssuranceSilent High-Speed Mini PCFeaturing an advanced cooling and noise-canceling system, the H7-10th ensures ultra-quiet operations with active noise-canceling technology. Its robust 2.4GHz/5.0GHz dual-band WiFi delivers speeds up to 450Mbps (2.4GHz) and 1300Mbps (5GHz) for stable, high-speed data transfers. With Bluetooth 4.2, connect swiftly and securely to wireless devices like headsets and mice, eliminating the hassle of wired setups.
All our products boast FCC, ROHS, and CE certifications for quality assurance. You'll enjoy a comprehensive 3-year warranty, 24/7 customer service, and lifetime technical support, ensuring ongoing assistance for your product. Product ParametersH7-10th Industrial Mini PC Specification

Processor
CPU	intel core i3-10110U (4M Cache, 2 Cores 4 Threads, Base Frequency 2.10 GHz Turbo Frequency 4.10 GHz) intel core i5-10310U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.70 GHz Turbo Frequency 4.40 GHz) intel core i7-10610U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.90 GHz)
TDP	15W
CPU Lithography	14 nm
Memory Specifications
Max Memory Size	64GB
Memory Types	2*DDR4 SO-DIMM 260 pin
Memory Channels	Dual Channels
ECC Memory	Don't support
Storage Specification
m.2 SSD	1*M.2 2280 M KEY PCIE3.0
SATA	1*SATA3.0 Slot for 2.5 inch HDD/SSD
mSATA	NO mSATA slot
Graphics
Processor Graphics	Intel UHD Graphics
HDMI	HDMI 4096*2160@30Hz (4K) + HDMI 4096*2160@60Hz (1080P)
Power Specification
Adapter Output	DC 12V/5A
Adapter Input	AC 110-240V, 50/60HZ
Consumption	50W
Auto Power On	Support Auto Power On Function
In & Out interfaces
USB Port	4*USB 3.0 port,4*USB 2.0 port
Audio	1*3.5mm MIC in & SPK out
Video	HDMI 4096*2160@30Hz + HDMI 4096*2160@60Hz 2 Display Output
Audio Cards	USB Audio Device
Lan Port	2*RJ45 Lan Gigabit Ethernet Controller, Realtek 8168/8111
Com Port	2*RS232 Com port
WiFi	Inside WiFi & Bluetooth Combo
Others
System	Support Windows 10/11 , Linux
BIOS	Support AUTO POWER ON,Wake On LAN,RAID,PXE
SIM	1*SIM slot,Support Nano-SIM (9*12mm)
MPCIE	1*MPCIE,Support Wifi/3G/4G Module (26.80*30mm)
Work Environment	-10ºC--60ºC(14F~140F) , 30%--90% Humidity
Case Material	Full Brushed Aluminum Alloy
Dimension	PC size 170*126*58mm Package size 308*206*75mm
Weight	Net 1.1kg; Gross 1.9 kg

Company ProfileHYSTOU is a reliable manufacturer and exporter of fanless Mini PC, industrial PC, all in one PC and industrial panel PC. Our products are exported to the EU, America, Asia, etc., and have enjoyed a great reputation in the whole world market. In order to supply quality products and excellent services, our company has got approvable reports and certificates of CE, FCC, RoHS, SGS, ISO9001 and so on. Our goal is "Innovation First, Quality First, Customer First, Service First".
Packaging & ShippingPacking List: Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable(some model just support one Msata)
1 x Warranty card & user manual
