High Quality10L 15L PE Bottles Blow Molding Machine

Product Description

Dawson machinery and mould group

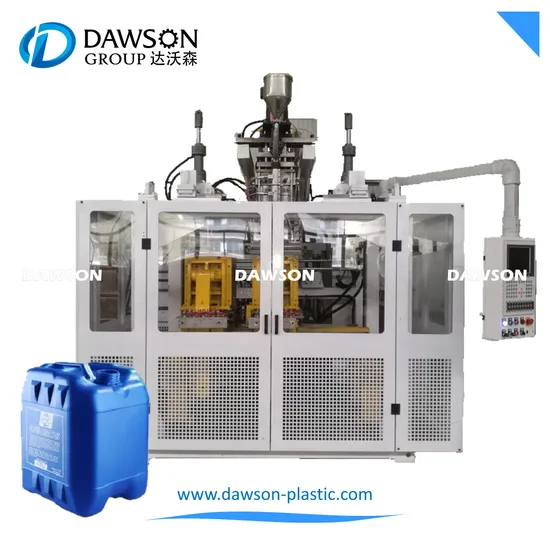

Double Station Extrusion Blow Molding Machine TP15D-90
Machine Model TP15D-90
Double station Extrusion Blow Molding Machine
( Single head for produce 5-15L bottles )
*Volume 15L
*Net Weight 1 Kg
*Output 95-100 pcs/hr.
- Single head for making 15L bottles
- Double head for making 10L bottles
- 3 die head for making max. 8L bottles
- 4 die head suitable for max. 5L bottles
( we also provide single station blow molding machine, customer can choose according to budget and output demands. )
Standard Features
1. Double station blow molding machine with 90mm grooved extruder.
2. Single, double triple and quadruple head capacity.
3. Reliable two-plate axes mould locking.
4. Processing HDPE, LDPE, PP capacity.
5. Multi-blow extrusion heads with quick color change.
6. In machine automatic deflashing and cooling station.
7. Nitrided screw and berrel.
8. Adopt hydraulic accumulators.
9. Low power consumption.
10. Up blowing system.
11. Machine control by microprocessor B&R
12. SERVO valve for hydraulic and 100/300 point Parison thickness.
13. Gripper for bottle take out inside machine.
14. Carriage fast movement by Prop Valve.
15. Safety ladder and rail protection.

Configuration

Main Part	Brand
Servo oil pump	REXROTH from Germany
High pressure oil pump	YUKEN from Japan
Pneumatic	FESTO from Germany or SMC from Japan
Proportional valves	REXROTH from Germany
Directional valves	YUKEN from Japan
Control system	B&R From Austria
Frequency converter	ABB From Switzerland
Contactor	SCHNEIDER From Franch
Linear roller bearings	HIWIN from TAIWAN
Motor	SIEMENS from Germany
Gearbox	SEW from Germany
Electronic ruler	Novotechnik from Germany

Our customers Germany, Italy, United Kingdom, Spain, Russia, Ukraine, Aussie, Canada, Egypt, Nigeria, India, Thailand, ... etc.

---
