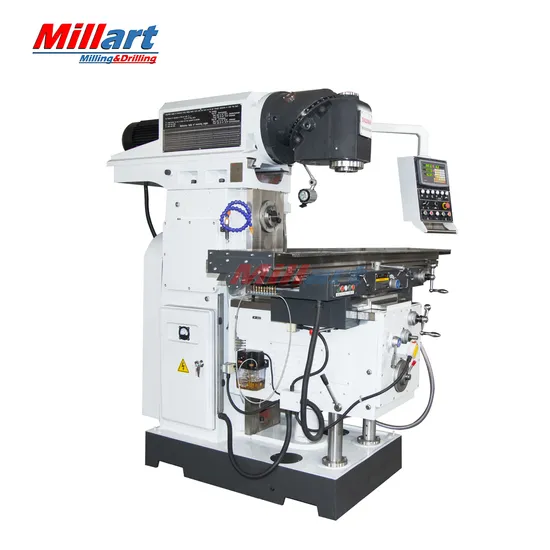

China Double Milling Head Um1480 Universal Milling Machine

Product Description

China Double Milling Head Um1480 Universal Milling Machine
Feature:
Two joint type mill head can swivel 360degree, it is avaliable multi direction point of milling.
X Y Z axis speed changed in fire-pin type, gear drive, auto feed.
Technical parameter:

Model	UM1480
Spindle Taper	ISO 50
Distance from Spindle to Column surface	0-1000mm
Distance from Spindle Nose to Table Surface	50-650mm
Distance from Horizontal Spindle Center to Table	440mm
Spindle Speed Range	12 steps 50-1520rpm(Vertical) 12 steps 60-1850rpm(Horizontal)
Table Size	2000×400mm
Worktable Swivel Angle	45°
Table Travel X axis	1600mm
Cross Y axis	495mm
Vertical Z axis	600mm
X,Y axis Feeding	8 steps 22.4-560mm/min
Z axis Feeding	8 steps 11.2-280mm/min
T-slots of Table	3
Width	18mm
Distance	90mm
Main Motor	Vertical 7.5kw Horizontal 5.5kw
Feeding Motor	3kw
Coolant Pump Motor	90w
Overall Dimensions	2300×2300×2270mm
Net Weight	4100kg

Standard accessories:
Mill chuck set
Draw bar
Mill arbors
Worktable swivel ±50 degree
Reduction sleeve
Coolant device
Coolant tray
Automatic central lubrication
Foundation bolts
Tools
Optional accessories:
Machine vice 160mm
Machine vice 200mm
3-Axis Digital readout
Universal Dividing Head F11-160A
Rotary table TSL300
58 pcs Clamping kits
Spindle protection
Worktable protection
Slotting head
Schneider electrical components
