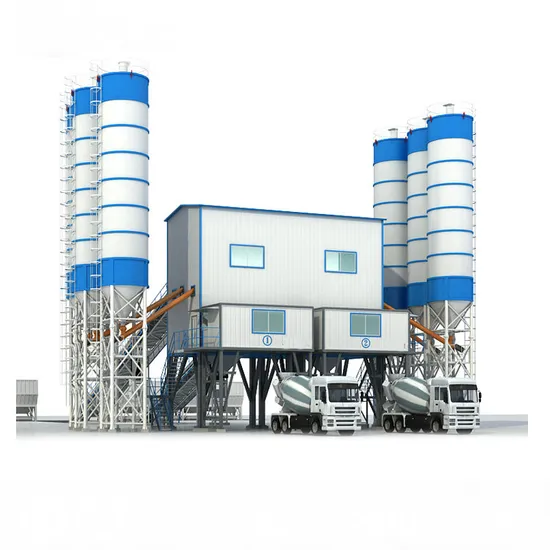

Construction Machine Mixing Concrete Batching Plant

Product Description

Product Information
1.Modular design
2.Electronic measurement
3.High accuracy
4.Automatic adjustment and alarm
Application:
Base construction projects like road, airport, dock, etc
Advantages:
1. Stable high quality
2. competitive price
3. high working efficiency
4. low consumption
5. accurate measurement
Main Technical Parameter:

Model		SAZS60	SAZS90	SAZS120	SAZS180
Capacity (m³/h)		60	80	120	180
Mixer	Model	JS1000	JS1500	JS2000	JS3000
	Power(KW)	2X18.5	2X30	2X27	2X55
	Output	1	1.5	2	3
	Max stone size(mm)	60	80	120	150
Hopper Capacity		3*8	4*10	4*15	4*25
Belt Conveyer (t/h)		200	250	300	500
Weighing Accuracy	Aggregate	2500±2%	3500±2%	4500±2%	6500±2%
	Cement	600±1%	900±1%	1200±1%	1800±1%
	Coal ash	200±1%	300±1%	600±1%	800±1%
	Water	300±1%	400±1%	600±1%	800±1%
	Additive	20±1%	30±1%	30±1%	50±1%
Total Power		65	105	151	205
Discharge Height		3.8	3.8	4.1	4.2

Characteristics for concrete batching plant
1) Little land consumption;
2) Quick installation, taking just 2-4 days to complete installation of the whole equipment;
3) Implemented with hoist to move material upward, special design of hopper and rails, ensuring efficient storage and discharge of aggregate;
4) Main body of the equipment is placed on a steel framework, which makes it convenient to put it in trailer for transport. Moreover the steel
framework could serve as part of fundament, reducing construction of foundation;
5) Mixing platform, dosage platform and lifting platform enjoys as much space as that of stationary plant, ensuring convenient operation.
Commissioning and maintenance space; There would be enough work space even when the plant is fitted with external covering.
