Automatic PE film heat sleeve shrink wrapping packaging machine with shrink tunnel

Product Description

Product Description
Automatic pe film heat sleeve shrink wrapping packaging machine with shrink tunnel
Product Description
Machine description and features:
Packing Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ cooling
1.Feeding: The bottles enter into conveyor trough of sealing machine, on the conveyor trough there are adjustable guardrail. The feeding will stop when the bottle arrived to the set position.
2.Pushing bottles: After the bottles arrived to the pushing platform, the pushing cylinder will work at the same time to push the bottles over the sealing-cutting line.
3.Cover film and sealing: After bottles pushed over the sealing-cutting line, the upper pressing device will press the bottles, this process will protect the bottles falling. After pushing cylinder return, the film sealing cylinder and film cutting cylinder will work together to finish the film covering and sealing process.
4.Shrink: After finishing the film covering the bottles will enter to the shrinking stove.
5.Cooling: After shrinking, the bottles will enter into the cooling device which installed on the end part, then enter into the stock shelf and waiting for stacking.

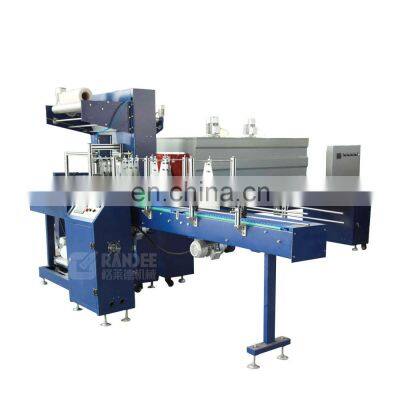

Automatic PE film heat sleeve shrink wrapping packaging machine
Feeding bottle conveyor belt
Cutting part
Photoelectric detecting bottles
Shrink tunnel
Electrical control cabinet

Main technical parameter:

Name	Automatic heat shrink film shrink packing machine
Model	GD-150A
Maximum size of package	420*300*350mm
Max. sealing size	650mm
Level of the conveyor	950 ± 30mm
Material of shrink film	PE
Maximum shrinkage temperature	160-260℃
Maximum production speed	8-12 packs / min
Working pressure	0.6MPa-0.8Mpa
Power (rated/real)	26kw / 16kw
Weight	1200KG
Dimension of the equipment	5050*3300*1600mm
