Product Description
Product Description

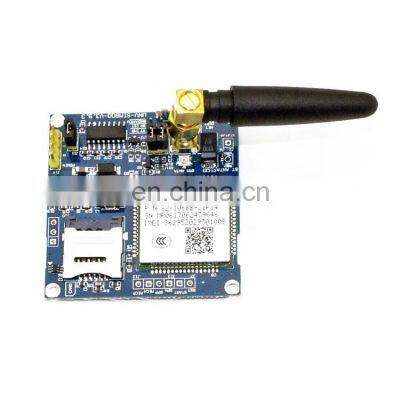

DescriptionSIM800A Development Board 2G GPRS GSM Module• SIMCom presents an ultra compact and reliable wireless module. The SIM900A is a complete Dual-band GSM/GPRS module in a SMT type which is designed specially for Chinese market, allowing you to benefit from small dimensions and cost-effective solutions.• Featuring an industry-standard interface, the SIM900A delivers GSM/GPRS 900/1800MHz performance for voice, SMS, Data, and Fax in a small form factor and with low power consumption. • With a tiny configuration of 24mm x 24mm x 3 mm, SIM900A can fit almost all the space requirements in your applications, especially for slim and compact demand of design.General featuresDual-Band 900/ 1800 MHzGPRS multi-slot class 10/8GPRS mobile station class BCompliant to GSM phase 2/2+Class 4 (2 W @900 MHz)Class 1 (1 W @ 1800MHz)Dimensions: 24*24*3 mmWeight: 3.4GControl via AT commands (GSM 07.07, 07.05 and SIMCOM enhanced AT Commands)SIM application toolkitSupply voltage range: 3.1...4.8VLow power consumption: 1.5mA(sleep mode)Operation temperature: -40° C to +85 ° CSpecifications for DataGPRS class 10: Max. 85.6 kbps (downlink)PBCCH supportCoding schemes CS 1, 2, 3, 4CSD up to 14.4 kbpsUSSDNon transparent modePPP-stackSpecifications for SMS via GSM/GPRSPoint to point MO and MTSMS cell broadcastText and PDU modeInterfacesInterface to external SIM 3V/ 1.8Vanalog audio interfaceRTC backupSPI interfaceTwo Serial interfacesAntenna padI2CGPIOPWMADCEnhanced version add following featuresFOTA ( available at July, 2010)MMS (available at July, 2010)Embedded AT (available at Q3, 2010)Software features0710 MUX protocolembedded TCP/UDP protocolFTP/HTTP( available at July, 2010)CompatibilityAT cellular command interfaceCertificatesRoHSTAREACHWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
