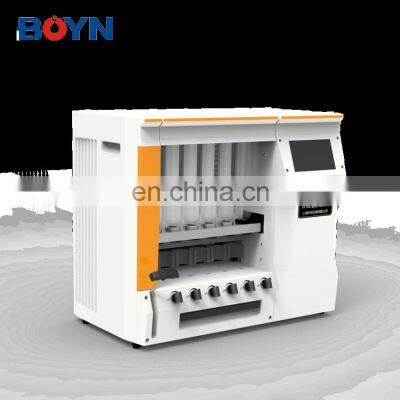

DF-602, Automatic Intelligent Dietary Fiber Analyzer

Product Description

Product Description
DF-602, Automatic Intelligen Dietary Fiber Analyzer



Product description:
DF-602 is the company's own design and development of the perfect dietary fiber analyzer. Focus on solving the problem caused by the transfer of the sample, so more accurate than the filter bag. Set of hydrolysis, stirring, heating, constant temperature, plus liquid, precipitation, pumping in one, efficient, convenient, accurate and safe. Filling the company's 30 years of industry experience. Build world-class advanced technology and reliable quality. To ensure that every instrument is your effective assistant, in line with GB / T5009.88.
DF-602 uses a fully enclosed structure, the set of hydrolysis, heating, shock pumping, washing and washing in one. With independent heating and pressure control of the new method of mixing, each can do six samples. Using large-capacity crucible, the whole process of sample without transfer, large-screen LCD display and monitor. In the course of operation, there are regular temperature control to achieve accurate and rapid purpose, throughout the testing process to ensure the reliability and accuracy of the test data, and no harmful material spillover.
Working principle:
Take the dried sample, digestion with α-amylase, protease and glucosidase to remove the protein and starch. After digestion, the sample solution is precipitated with ethanol, and the residue is washed with ethanol and acetone. After drying, Dietary fiber residue. The samples were directly filtered through the above three enzymes, the residue was washed with hot water, dried and weighed to obtain insoluble dietary fiber residue. The filtrate was precipitated with 4 volumes of 95% ethanol, filtered, dried and weighed to give a soluble dietary fiber residue. After the above-obtained residue was dried and weighed, the protein and ash were measured separately. The total dietary fiber, insoluble dietary fiber and soluble dietary fiber residue subtracts protein, ash, and blank to calculate the total, insoluble and soluble dietary fiber content of the sample.
Main feature:
l The whole process without transferring samples, to avoid operating errors
l Set of enzymatic hydrolysis, stirring, heating, constant temperature, plus liquid, precipitation, pumping in one
l Mobile semi-circular silicon carbide heater, heating fast and stable, safe operation
l Special filter pump, fiber patented products, apply to all corrosive solvents
l Pneumatic function to ensure thorough digestion of the sample
l Directly control the temperature of the enzymatic hydrolysis of the liquid, the enzymatic effect to achieve the best condition
l 7-inch ultra-fine color screen, touch screen control, the interface avant-garde fashion is simple and simple
l Heater detection in place
Core Technology:
l Special filter pump:Fiber patented products, 30 years of industry experience developed a unique formula raw materials. Applicable to all corrosive solvents, the use of a wider range, fully reflects the fiber inspection technology and strength;
l Integrated anti – misoperation interface design:Completely avoid the wrong button caused by the misuse, reflecting the ultimate concept of human nature;
l Special condensing tube:Integrated condensation and liquid integration, flexible and convenient operation;
l Pneumatic function:Without the need for agitator immersed in the sample, eliminating the sample sticking to the stirrer is difficult to clean the error caused, but also to avoid the risk of rocking stirring;
l Rise and fall timing dual system:Designed for dietary fiber design tailored temperature control; Breaking the conventional only temperature control timing mode, to avoid the cooling temperature control time error;
Technical parameters:

7 inch ultra-fine color screen	touch type
Test range	0 ~ 100%
Batch time	3 hours
Analysis temperature range	room temperature ~ 200 ℃
Temperature control mode	the cooling system control
Temperature control accuracy	± 0.5 ℃
Mixing mode	air pressure mixing, no interference, no mutual pollution
Results Standard deviation	≤0.5%
Recovery	≥99%
≥99%	no need for constant temperature water bath and filter bottles, no smell floating, just ordinary standard laboratory;
Anti-error performance	no sample transfer, all enzymatic hydrolysis and washing filter, directly on the instrument to complete;
Number of samples	1 to 6 samples at the same time
Heating method	mobile semi-circular silicon carbide independent heater
Power	220V±10%,50~60HZ
Rated power	2000W
Size	700×400×600(mm)
Weight	38kg
