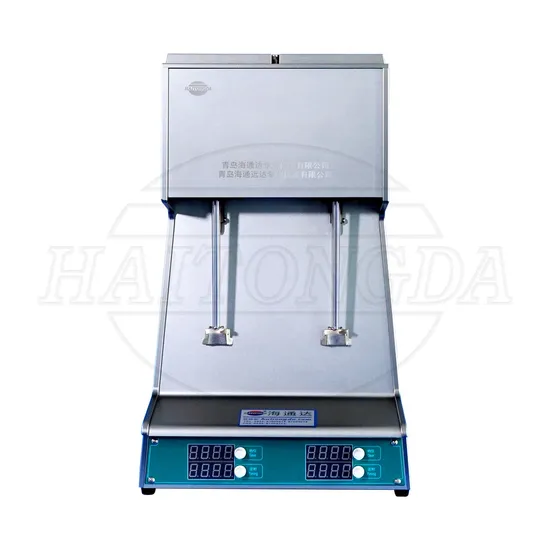

Frequency Conversion High Speed Mixer Double Draft Integrated Machine Blender Lab Equipment

Product Description

Slurry formulations usually contain a base liquid and additives which must be dissolved or mechanically dispersed into the liquid to form a homogenous fluid. The resulting fluid may contain one or more of the following: water -dispersible (soluble) polymers or resins, clays or other insoluble but dispersible fine solids, and soluble salts. The fluids are mixed or sheared for times appropriate to achieve a homogenous mixture.
Shearing devices vary widely in the amount of shear they impart. Longer shearing times may be required for low shear devices to achieve complete dissolution/hydration of fluid components; while high shear devices may produce nearly completely yielded drilling fluid blends in a few minutes.
Drilling fluid formulations are commonly mixed with various shearing devices which may be either fixed speed or variable speed. The motors may turn mixing shafts with rounded "propellers," sharp blades, wave-form shapes, or others. Single shaft or multiple shaft devices are used. The series of high speed mixers include the products such as the GJD-B12KX, GJS-B12KX and GJSS-B12KX etc. The advanced frequency-variable technology and microcomputer technology. They are characterized by timing, constant speed, and single-axle/multi-axles working simultaneously. The mixing blades are manufactured in accordance with the API standard. The instruments also have the characters of simple operation, strong starting moment, stable rotational speed, high reliability and low noise.
Technical Specification

No.	Project	Model
		GJD-B12KX	GJS-B12KX	GJSS-B12KX
1	Power supply	220V±5% 50Hz
2	Rated power	250 W	250W×2	250W×4
3	No-load speed	3000,4000,6000,8000,10000,11000,12000r/min
4	Mixing volume	500ml	500ml×2	500ml×4
5	Timing range	1~20 min
6	The environment temperature	-20ºC~60ºC Non-condensate
7	Environmental humidity	<90%
8	Net weight / Gross weight	18kg/27.54kg	30kg/40.12kg	55kg/74.54kg
9	Overall dimensions	410×300×600mm	510×530×580mm	820×530×580mm
10	Packing size	530×345×660mm	540×430×650mm	450×310×655mm 540×430×655mm

FAQ:
Q1 : Are you a manufacturer or a trading company ?
A1: We are manufacturer.
Q2: What is your main brand?
A2: Our brand is Haitongda, which is famous in China and other nation. Also we do OEM.
Q3: What are your business scope and product classification?
A3:Business scope: mud analysis instrument, electronic products, special instrument, mold design and manufacturing; Instrument maintenance and sales; Import and export of goods and technologies.
Product classification: including drilling fluid analysis instrument, oil well cement testing instrument and field overall solution, including 22 small categories and over 120 products.
Q4: What is your MOQ for the order?
A4: Testers per 1 set.
Q5: What is the warranty period of your instrument?
A5: One year.
Q6: Can I get better offer if our order can be bigger?
A6: Certainly. We will give you better prices based on the quantity for your order.
Q7:What certificate do you have for your instrument?
Q7: ISO, SGS and so on
Q8: What is your lead time for our order?
A8: For new order: 3 weeks;
For stock order: 3 working days after T/T. Based on FOB Qingdao.
Q9: What is your advantage of your factory?
A9: We are the original oil ministry designated drilling fluid analysis equipment manufacturer in China, which was founded in 1968.
Q10: What is the process to become an agency?
A10: Please send us mail enquiry, then we will reply you as soon as possible.

---
