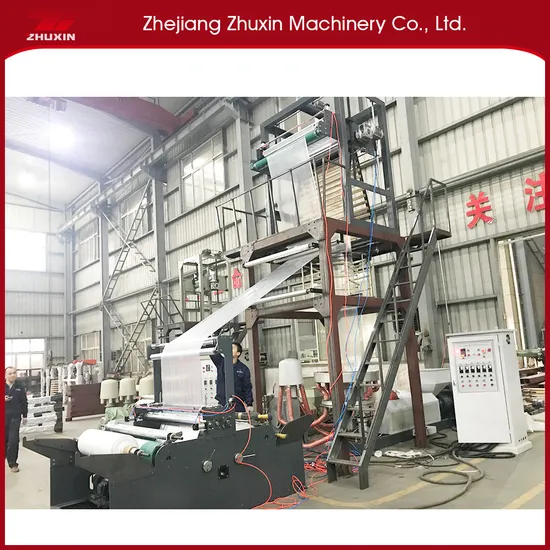

Industrial Colored Film Blown Machine Adopts Horizontal Swing Rotation

Product Description

Industrial Colored Film Blown Machine adopts horizontal swing rotation We are Film Blowing Machine manufacturer/supplier from china factory. We also can produce the Film Blowing Machine according to the client's requirement.
We are always try our best to become the good Film Blowing Machine manufacturer/Supplier and welcome the customer from all over the world to contact with us. PRODUCT INFORMATION Categories: Film Blowing Machine Brand: Zhuxin Paper bag machine, film blowing machine Model: SJ-A 45/50/55/60/65 FOB port: Ningbo sea port Terms of Payment: L/C, Western Union, T/T Comments: It with single rolling friction, lift up and down which is suitable for industrial film and agricultural film.

Model		SJ-A45		SJ-A50		SJ-A55		SJ-A60	SJ-A65
Suitable material		HDPE,LDPE,LLDPE
Reduced diameter of film (mm)		100-500		300-600		400-800		500-1000	600-1200
Film thickness of (mm)		HD:0.009-0.05 LD:0.02-0.15
Max.output(kg/h)		HD50 LD60		HD 60 LD 70		HD 80 LD 90		HD 90 LD 100	HD100 LD110
Extruder
Screw diameter		45		50		55		60	65
Screw L/D		30:1
Screw material		Sacm-645/38 crmoala
Cylinder material		Sacm-645/38 crmoala
Cylinder cooling(w)		180*3		180*3		180*3		180*3	180*3
Main motor(kw)		15		18.5		22		30	37
Cylinder temperature control		3		3		3		3	3
Average power consume(kw)		15		20		22		30	37
Type of die
Die size(mm)	HD60 LD100		HD80 LD120		HD80 LD180		HD100 LD200		HD100 LD220
Temperature control	3		3		3		3		3
Air ring	1		1		1		1		1
Air blower power (kw)	1.5		2.2		3		3		4
Center steady stick	1		1		1		1		1
Take up unit
Roller width(mm)	160*650		160*850		165*1100		165*1200		165*1400
Take-up speed(m/min)	10-100		10-100		10-100		10-100		10-80
Take-up motor(2.2)	0.75		0.75		1.1		1.1		1.5
Winding Unit
Type	Surface friction type
Winding motor(N.m)	10		10		10		10		10
Winding speed(m/min)	10-100		10-100		10-100		10-80		10-80
Voltage	380V,50HZ,3PHASE
Outline diameter (LxWxH)(mm)	5000×1800×4200		5500*2200*4500		5500*2500*5200		5000*2400*4200		5500*2500*5200
Weight(kg)	2000		2200		2500		2800		3000
Optional equipment	1.Auto loader 2. Film surface treater 3. Rotary die head 4. Air compressor 5. Mechanics screen changer 6. Double wind 7.air shaft 8. high speed machine with one set air ring and die head, extra set cost extra

PERFORMANCE AND CHARACTERISTICS The machine body is channel steel frame traction frequency friction, with single rolling friction, lift up and down which is suitable for blowing high-low pressure polyethylene industrial fiml and agricultural film.
Company Profile
WORKSHOP
OUR CERTIFICATES
TRADE EXHIBITION
SERVICE
FAQ
1.Q:Are you a factory or trading company ?
A:We are a factory

2.Q:Where is your factory located ?How can I visit there ?
A:Our factory is located in Ruian City , Zhejiang Province ,China
About 40 minutes by plane from shanghai (5 hours by train )

3.Q:How is your after-sales service ?
A:We have been in this printing machine line of business for more than many years ,
We will send our professional engineer to install and test machine .So our after-sales service is always reliable.

4.Q:If your machines can print ?
A :Our machines is multifunction , do roll to roll printing , such as paper, plastic film , woven bag , nonwoven .
Surely , you can offer your products, Let us confirm it .We will suggest you the best project.

5 .Q:How does your factory do regarding the quality control ?
A:We are the technical factory, we put more time on the quality control.
Question: Are you Manufacture or Trading Company?
Answer:We are printing machines manufacturer nearly 10years, we had established our own trading company to expand our foreign market business, and provided our customer better service.
Question: Where is your factory located? How can I visit there?
Answer: Our factory is located in Wenzhou City, Zhejiang province, China. The nearest air port is Wenzhou airport, we can go Wenzhou airport pick you.

6.Q: How does your factory do regarding quality control?
Answer: Most our machine mechanical parts are processed by ourselves. So we can better control our quality from beginning. Electrical Part we had cooperated with good foreign brand, such as ABB, Yaskawa, Siemens, Airtac, NSK, Delta, Panasonic etc. And all our machine will do running test before shipping.

7.Q:Do you company provided foreign country machine installation services?
Answer: We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.

8.Q: How your company provided after sales service?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) each machines we will give some spare parts free when shipping machines. Within guarantee machine parts damage, we will send to you free by express asap. If customer required engineer go to solve problem is possible.


We have been working hard to become your Purchasing Guide and provide you one-stop Purchasing service. We looking forward hear you soon.

---
