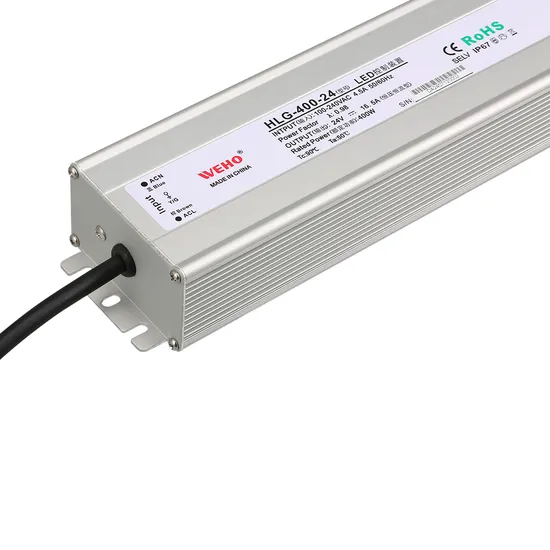

Waterproof IP67 Constant Voltage Hlg Series 400W 12V 24V 36V 48V AC to DC Single Output SMPS Switching Power Supply

Product Description

Product Description Waterproof Ip67 Constant Voltage HLG Series 400W 12V 24V 36V 48V Ac to Dc Single Output Smps Switching Power Supply
Features:
1. 95-264V AC Input
2. Protections: Short circuit / Overload / Over voltage / Over temperature
3. 100% full load burn-in test
4. Low cost, high reliability
5. 24 months warranty
Detailed Photos
Product Parameters

Model	HLG-400-24	HLG-400-36	HLG-400-45	HLG-400-48
DC output voltage,rated current	24V 16.5A	36V 11A	45V 8.8A	48V 8.3A
Wave andnoise	180mVp-P	200mVp-P	220mVp-P	220mVp-p
Line regulation	±0.5%	±0.5%	±0.5%	±0.5%
Load regulation	±2%	±0.5%	±0.5%	±0.5%
Efficiency	0.923	9.39	0.935	0.94
Voltage accuracy	±3%	±2%	±2%	±2%
Input voltage range	95~264VAC/135~373VDC 47~63Hz
Impact current	Cold start current 45A/230VAC
Overcurrent protection	95%~108%of therated output current starts overcurrent limit,recover automatically after abnormal conditions areremoved
Short circuit protection	Hiccup mode:recover automatically normal output after abnormal conditions are removed
Setup,rise,hold uptime	200ms,30ms,20ms/230VAC(at full load)
Pressure resistance	I/P-O/P:1.5kV I/P-FG:1.5kV O/P-FG:0.5kV
Isolation resistance	I/P-O/P I/P-FG O/P-FG:100MOhms/500VDC/25C/70%RH
Working temperature	-20C~+60C
Dimension	240×69×43mm
Weight	1.35kg
Packing	16PCS

Certifications
Packaging & Shipping
Company Profile
FAQ Q1:Are you a factory or trading company?
A1:We are factory.
Q2:Why choose us
A2:We have been engaged in the switching power supply industry for 17 years,We have enough experience to meet your needs.
Q3:How can I get the samples?
A3:You can pay for the sample this time, and we will refund the sample fee for the next batch order.
Q4:How to order?
A7:Please contact us online to send you a proforma invoice or send us your purchase order by email.
Q5:How many years warranty of your switching power supply?
A8: Three years.

---
