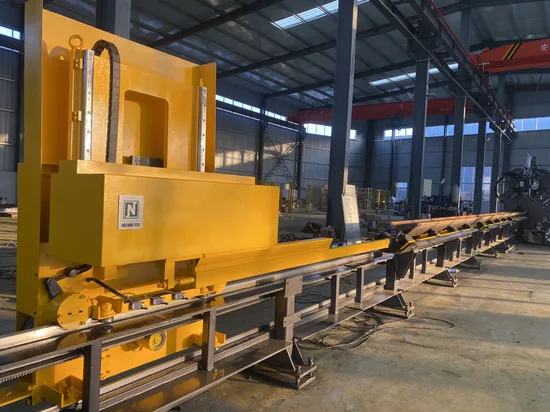

CNC High Speed Angle Drilling and Marking Machine Adm3635

Product Description

Product parameters
Technical specification of ADM3635 1.Angle size(mm): 140×140×10 ~ 360×360×35
2.Stadia range:50-220 (stepless) (mm): 50 ~ 330
3.Quantity of drilling row per side: arbitrariness
4.Quantity of drilling spindle per side: 3
5.Drilling diameter (carbide drilling head)(mm): φ17.5 ~ φ40
6.Morse tamper of drilling spindle: BT40
7.Max. rotation speed of drilling spindle (r/min) /power (kw): 6000/6X15
8.Quantity of CNC axis: 9
9.Max.length of workpiece : 12
10.Angle feeding speed ( m/min): 40
11.Norminal marking force (kN):1200
12.Quantity of character group: 1
13.Quantity of marking per group: 20
14.The finished angel conveyor is rotated to one side by pneumatic power. The max. length of finished angel is 12 m.
15.There are four transverse conveyors which can infeed automatically and intermittently.
16.Type of programming: keyboard input, USB interface input, floppy disc input.
17.Air pressure: ≥1.0Mpa; emissions: ≥1.0m3/min
Layout:
1.Working pressure of Gas supply:≥1.0Mpa;displacement≥3.0m3/min
2.Working temperature: 0ºC~ 40ºC
3.Power: Three phase four wire system
4.AC Voltage: 380V
5.Fluctuation of voltage: ±10%
6.Frequency: 50 Hz

The list of the main outsourcing components of ADM3635

Serial No.	Name	Brand	Country
1	AC Servo motor	Panasonic	Japan
2	Towline	Igus/CPS	Germany/Korea
3	Linear guide	HIWIN	Taiwan
4	flexible coupling	KTR	Germany
5	Rotary joint	Deublin	America
6	Pneumatic device	SMC	Japan
7	solenoid valve	AirTAC	Taiwan china
8	Cylinder	AirTAC	Taiwan china
9	CPU	Mitsubishi	Japan
10	Positioning Module	Mitsubishi	Japan
11	Vane pump	Ebert	America
12	Hydraulic valve	ATOS/Yuken	Italy/Taiwan

Product display
Production process
Certifications
Company information
Packaging & Shipping
FAQ:
Q: How can I get a quotation?
A: Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephon
Q: When can you arrange shippment?
A: We usually arrange shippment in 10-30days

Q: Can you provide training for operation CNC machines?
A: Yes, free training in our factory is available.

Q: What you can do if my machines have problems?
A: a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
Q: How about your price?
A: Send me details about what you need, you will get the best price in China. The price is competitive over the world.

Q: What's your warranty terms?
A: We will supply a replacement for parts that prove to be defective for a period of 18 months, starting on the machine's bill of lading date. Extended warranty is available at the time of purchase. Please contact your Z-MaT sales representative for details .
Q: What's the delivery time, and what's the package?
A: Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.

---
