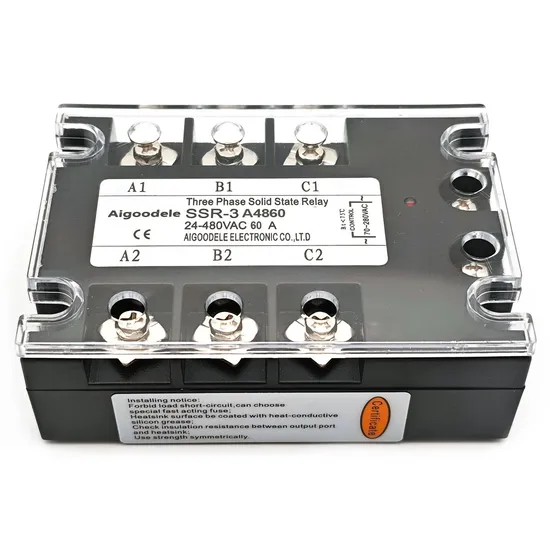

AA SSR 70-280VAC Input 24-480VAC 0utput Three Phase Solid State Relay 60A

Product Description

Product Description Product :Three-Phase Solid State Relay
Model : SSR-3 A4810 A4825 A4840 A4860 A4880 A48100 A48120 A48200
Current : 10A 25A 40A 60A 80A 100A 120A 200A
Control mode : AC control AC
Control voltage : 70-280VAC
Load voltage : 24-480VAC


Product Parameters

Parameter
Model	JGX-3 SSR-3 AC to AC
Control voltage	70~280VAC
Min Control Current	5mA
Max Control Current	25mA
Load voltage	24-480VAC
Load Current	10A/25A/40A/60A/80A/100A/120A
lnsulation Resistance	1000M Ohm/ 500VDC
off Leakage Current	<=2mA
on voltage	<=1.5V
On-off Time	<=10ms
Ambient Temperature	-20~+75ºC
Mounting Method	screw fixed
please use with radiator
Equipment power : equipment voltage = type selection current
Type selection current x Coefficient = equipment current (coefficient: 35% for resistive load and 20% for inductive load) For example: if a motor with rated current of 3A is inductive load,

Step 1: Choose a correct control Mode
AA- AC Control AC
Step 2: Choose a correct type
Current of Equipment/Ratio = Current of SSR
PS: The Ratio depend on the kind of your loading equipment.
Resistive load :70%, Inductive load:20%,Capacitive load:10%.
Step 3: Choose a suitable heat sink
During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.
Notice:
The inside of the solid-state relay is a semiconductor. A semiconductor switch is a non-physical contact switch. if use a multimeter diode or resistor to test ,it always show a high-impedance state, (multimeter light red).
According to the conventional detection methods of solid state relays: a load is required to test the switching state. Using an incandescent lamp as a dummy load is an obvious way to test continuity.
Application Note: This ssr relay module is not suitable for inductive loads such as transformers and motors.
Heating: electric furnace, injection molding equipment, thermoforming, textile equipment, infrared heating, drying system
Application Occasion:Lndustrial Kiln /Automatic Equipment /Heating Equipment /Lighting Equipment

Detailed Photos

Company Profile
Zhejiang Lingshine Electric Co., Ltd (Aigoodele), is a high-tech enterprise integrating production, sales and service. Our main products are frequency converter (VFD), soft starter (LSRQ), solid state relay (SSR), solid state voltage regulator (LSCR), high power rectifiers and so on (KP, ZP, MTC, MDS, MDQ, MDC, MDK, ETC). These products have been widely used in energy, petroleum, metallurgy, chemical industry, construction, plastics, textile, water supply, paper making, mining, printing and many other industrial fields. In addition, our products not only perform well in the domestic market, but have also been exported to dozens of countries and regions in Asia, Africa, Europe and other continents, winning wide international recognition.
We look forward to cooperating with every customer, welcome your guidance and suggestions, and work together to create a more brilliant future.
FAQ Q1.Can you provide price sheet and catalog to me ?We are pleasure to provide these to you for reference,you can cotact me,give me your emails ID.
Q2.Can I get some samples?
Yes,Sample order is available for quality check and market test .but you need to pay the sample fee and shipping cost
Q3.How long is your lead time?2-3 days for the stocks items, mass production generally needed 1-2 weeks.
Q4.What's your payment terms?
We usually accept all kinds of payment terms.Such as T/T,L/C,Western Union.Cash.
Q5.What's your warranty terms?
We offer 12 months warranty time.
Q6.Do you have the products in stock?
Depends on your request,We have standard models in stock.Some special products and big order will be newly produced according to your order.
Q7 How about your payment and shipment?Payment: We accept T/T, Western Union, Paypal, Cash etc.We usually ship via DHL, UPS, FedEx or TNT, SF for small order and via ocean for bulk order according to your requirement.
Q8.How does your factory do the quality control?
Quality is priority,we always attach the importance to quality control from the beginning to the end of the production.every product will be fully assembled and carefully tested before packing and shipping.

---
