KIMA KMZ28 Hydraulic High Quality New Small Mini Excavator with Free After Sale Service CE EPA for Sale

Product Description

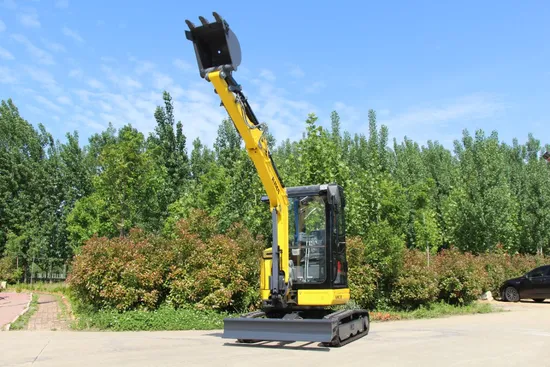

KMZ28 Mini Excavator
Excavator engine: Yanmar
Two speed
Swing boom
Excavator dimension:4159x1550x2560mm
Excavator weight: 2820 KGS
Excavator Bucket capacity:0.08m³
Description

Type of cab		Cabin
Bucket capacity		m3	0.08
Bucket width		mm	460
Machine weight		kg	2820
Dimensions	Overall length	mm	4159
	Overall height	mm	2560
	Overall width	mm	1550
	Ground clearance	mm	320
Engine	Brand	Yanmar
	Model	3TNV80F
	Output	KW	15.2
Working ranges	Max digging height	mm	4132
	Max dumping height	mm	2742
	Max digging depth	mm	2485
	Max. digging radius	mm	4610
	Min .swing radius	mm	2096
	Tail swing Radius	mm	775
	Deflection angle(Left/Right)	°	47/74
	Max digging force (Arm)	kN	14.2
	Max digging force (Bucket)	kN	20
Track	Type		Rubber track
	Rubber shoe width	mm	250
	Track length	mm	2040
	Track Gauge	mm	1250
	Track grounding Length	mm	1600
Traveling speed		km/h	2/3.2
Gradeability		deg	58%/30°
Swing speed		r/min	11.5
Ground pressure		kpa	30.5
Hydraulic pumps	Flow rate	L/min	67.2
	Hydraulic pressure	Mpa	22
Fuel tank capacity		L	35
Hydraulic oil tank capacity		L	28

Details
Certification
Company Profile Linyi KIMA Machinery Co., Ltd. is a professional mini excavator and small wheel loader manufacturer with more than 15 years of production and export experience. Most products have passed CE and ROPS&FOPS certification. They have been sold to more than 30 countries and regions in Europe, Australia and North&South America and have been widely praised.
KIMA has been committed building the 'KIMA' brand, making every effort to provide customers with safe, energy-saving and efficient products, and constantly developing new products based on market demand and customer suggestions. In addition, KIMA always provides customers with patient, enthusiastic and professional after-sales service.
Professional and excellent team, excellence work attitude, and win-win business philosophy, no matter in the past or now, these are important factors for KIMA's success. In the future, KIMA will still remain true and keep moving. We look forward to establishing a good and long-term cooperative relationship with you. Linyi KIMA Machinery will always move forward with you!
After Sales Service 1. We will supply the whole day's online service to foreign customers. 2. Within the warranty period and if the machine parts are damaged under normal use conditions, we will offer free new ones for replacement.3. After the expiry of the warranty, we can renew the contract, which can enjoy the same service as that during the warranty period.

FAQ:Q1. What Payment terms would you accept? Normally we accept L/C, or /T 30% down payment, balance to be paid against BL copy and loading pictures.
Q2. What is your delivery time? For standard machines, the delivery time is Within 25-35 days after receiving the down payment.
Q3. What services would you offer if I buy from you? Our trained Professional service team offers high-quality, on-time service in a very friendly way. For a good customer
Experience, the content of pre-sales, includes the recommendation on the basis of the right products in physical condition. All you have to do is to inform us of your needs.
Q4. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery.
Q5:What to do if there is a problem with the product? 1. We offer 1 year or 1000-hour running time warranty. 2. We offer technical support for free all the time.
3. We can send the parts to the customers by express delivery as soon as possible.

---
