1000 2000 1500 Liter Carbon Steel ASME CE Stainless Horizon Vertical Steel Pressure Vessel Compressor Gas Compressed Air Storage Tank

US$1,643.25 1 Piece (MOQ)

Basic Info.

Function
Storage Pressure Vessel, Separation Pressure Vessel, Heat Pressure Vessel, Reaction Pressure Vessel
Application
Gas
Material
Carbon Steel
Pressure
0.1MPa≤p<1.6MPa
Storage Medium
Moncombustible/Nontoxic
Pressure Level
Low Pressure (0.1MPa≤p<1.6MPa)
Condition
New
Dimension(L*W*H)
1000*2360mm
Name
ASME Air Tank
Outer Material
Carbon Steel
Capacity
1500L
Max Working Pressure(MPa)
0.8
Height
2360mm
Connection
3-Inch Flange
Keyword
Air Receiver Tank ASME
Diameter
1000mm
Volume (M³)
1.5m3
Design Pressure(MPa)
0.8
Weight
375
Volume
1500L (1.5m3)
Inner Material
Carbon Steel
Transport Package
Wooden Box
Specification
1500L
Trademark
ZAKF or customized
Origin
Guangdong, China

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 236.00cm
Package Gross Weight
375.000kg

Product Description


Product Introduction

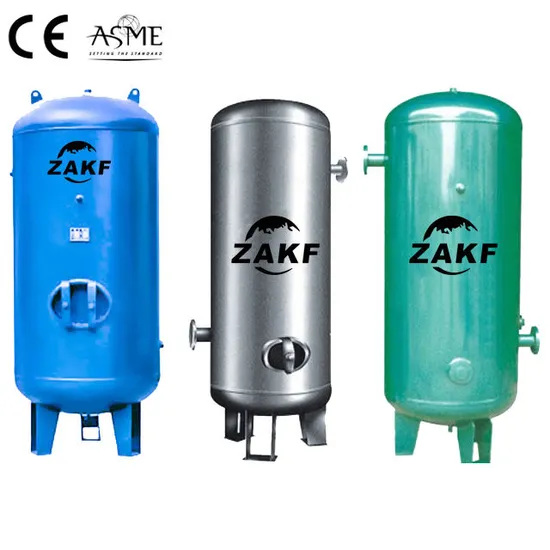

Carbon Steel ASME CE Stainless Steel Pressure Vessel Compressor Compressed Air Storage Tank




Features of air receiver tank Theair receiver tank plays a very important role in compressed air system with multi purposes by value of its design and the right air receive can also enhance the service life of compressor.
1.The air receiver tank stores the pressurized compressed air.
2.air receiver tank helps to maintain constant pressure at downstream.
3.air receiver tank cools the compressed air.
4. air receiver tank helps to separate oil an moisture from the compressed air.
5 air receiver tank allows the air compressor to have an optimum level of rest.

Product Parameters



Company Profile
Certifications

After Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Supply of accessorise
* Information supply

After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Machine maintenance
* Proposal of improvement

Packaging & Shipping
Customer Evaluation
FAQ
Q:Are you a factory or trade company?
A:We are a factory,we provide screw Air compressors,Air receivers,UltraFilters,Dryers,Electronic condensate drains and Oil/Water separators. Q:How to pay? A:T/T and L/C,Western Union,Paypal. Q:How about your monthly production? A:8000sets/month. Q: what's the advantages of your company? A:1. I have factory,the quality can be control. 2. the price is good 3. I have professional team 4. we can be your oem factory 5. Excellent after service. 6. we have inverter compressor, it can save energy. Q:How to package&delivery? A:we will use standard wooden case to package and shipped after finishing payment. Q:How many services you will provide about air compressor? A:we will provie perfect before-sales and after-sales for each machine.
