Quality Assured Steel Cord Conveyor Belt with Highest Cost Performance Width800 2200 Strength630 5400

Product Description

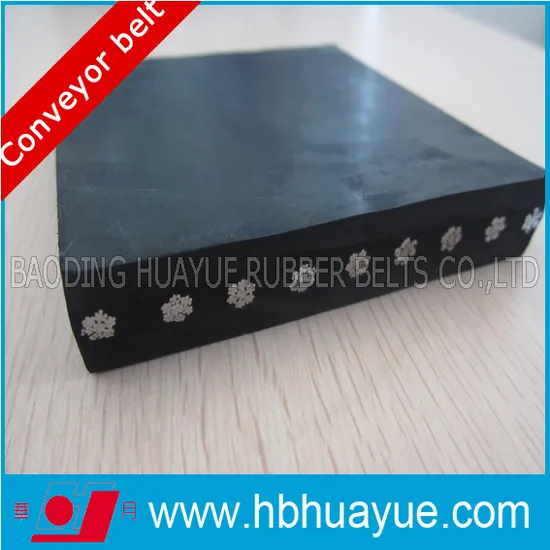

Wire rope st800 steel cord conveyor belt
Advantage
1. Dia of Steel cord: 3.0- 11.3
2: Width: 400-2200mm
3. Thickness: 4-30mm
4. Grade: ST/S630- ST/S5400
5. General / Reinforced / Underground with safety certificate from Chinese Government.
6. Abrasion resistant & High Tensile Strength
7. ISO9001: 2008, SGS, Bureau Veritas Certificate.
8. More Than 30 years professional experience. (Since 1982)
9. International Standard: DIN, BS, AS, RMA, AS, JISK, SABS etc
Type of steel cord conveyor belt:
1. General,
2. Fire-resistant,
3. Cold-resistant,
4. Abrasion-resistant,
5. Heat-resistant
6. Chemical-resistant.
7. Fabric reinforced
Configuration:
High tensile strength: Steel cord conveyor belt is suitable for large span, long distance transportation of materials Small elongation in use: It need only a very short take-up stroke distance.
Small diameter of drive pulley: Steel cord conveyor belt body has a layer of longitudinally arranged steel cords as its skeleton, and thus is resistant to flex fatigue. Therefore, drive pulley of smaller diameter can be used to make the equipment smaller
Specifiction/strength:
630N/mm-----6300N/mm
About Huayue Company Huayue is the Top 5 manufacturers and exporters of Reinforced Steel Cord Conveyor Belt in China. Our range of conveyor belts are highly appreciated by our clients due to its Abrasion resistant feature and availability in various sizes and designs. These are dimensionally accurate as per international standards.
Our best quality based on:
Manufacturer
Experience in Cooperate with Fortune 500 Companies
Professional Engineering Capability
Stable Quality
Reasonable Price
Small Orders Accepted
Continuous Improvements
High Product Performance
Prompt Delivery
Professional Service
For more details, please inquiry us!
Polyester conveyor belt, (EP)
Nylon conveyor belt, (NN)
Cotton conveyor belt, (CC)
Sidewall conveyor belt (SW)
Steel Cord conveyor belt ( ST )
Chevron conveyor belt, (C5 C10 and C15)
Oil Resistance conveyor belt, (OR and MOR)
Hot Resistance conveyor belt, (HR)
Fire Resistance conveyor belt, (FR/PVC/PVG)
Heat Resistance conveyor belt, (HR/ FR)
Cold Resistance conveyor belts, (CR)
Pattern conveyor belt ( 30+ Moulds)
Metal Mesh conveyor belt (Heat resistant temp until 800c)
Endless belts
Conveyor roller, idler
Conveyor Pulley, frame, bracket etc

strength of the belt specifications	ST 630	ST 800	ST 1000	ST 1250	ST 1600	ST 2000	ST 2500	ST 3150	ST 3500	ST 4000	ST 4500	ST 5000	ST 5400	ST 6300
longitudinal tensible strength	630	800	1000	1250	1600	2000	2500	3150	3500	4000	4500	5000	5400	6300
Maximal nominal diameter of the steel wire mm	3.0	3.5	4.0	4.5	5.0	6.0	7.2	8.1	8.6	8.9/9.1	9.7	10.9	11.3	12.3
Space bettween cord	10	10	12	12	12	12	15	15	15	15/17	16	17	17	18
Top cover thickness	5	5	6	6	6	8	8	8	8	8/8	8	8.5	9	10
Bottom cover thickness	5	5	6	6	6	6	6	8	8	8/8	8	8.5	9	10
Quality	18	19.5	21.5	22.2	26.1	33.1	35.3	41.1	45	45/45	51	59	62	65
Width specifications	Number of steel cords
800	75	75	63	63	63	63	50	50
1000	95	95	79	79	79	79	64	64	64	64/56	59	55	55	54
1200	113	113	94	94	94	94	76	76	77	77/68	71	66	66	63
1400	133	133	111	111	111	111	89	89	90	90/79	84	78	78	74
1600	151	151	126	126	126	126	101	101	104	104/91	96	90	90	85
1800		171	143	143	143	143	114	114	117	117/108	109	102	102	96
2000			159	159	159	159	128	128	130	130/114	121	113	113	107
2200						176	141	141	144	144/125	134	125	125	118
2400						193	155	155	157	157/137	146	137	137	129
2600						209	168	168	170	170/148	159	149	149	140
2800									184	184/160	171	161	161	151

---
