Product Introduction

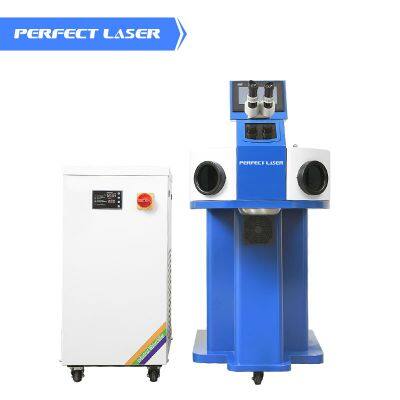

The jewelry laser welding machine is specifically for jewelry laser welding of a product, mainly used in gold and silver ornaments of the hole and spot welding blisters. Laser spot welding machine is one of the important aspects of the application of laser material processing technology. The jewelry laser welding machine’s process is heat conduction. That is, laser radiation heats the surface of the work piece. The heat of the surface spreads through the heat conduction to the interior. By controlling the width, energy, peak power and repetition of laser pulse Frequency and other parameters, the workpiece melting, forming a specific pool. Because of jewelry laser welding machine's unique advantages, has been successfully applied to gold and silver jewelry processing and micro, small parts welding.
Product Features
1．Energy, pulse width, frequency, spot size, etc. can be adjusted in a larger range to achieve a variety of welding results. Parameters from the closed chamber control rod adjustment, simple and efficient;
2．Adopting imported ceramic condenser cavity, corrosion resistance, high temperature, high efficiency of photoelectric conversion, life span of concentrating cavity (8-10 years), life of xenon lamp of the laser spot welding machine are all more than 8 million times;
3．The use of the world's most advanced automatic shading system, eliminating the time in the work of the eye irritation;
4．With 24-hour continuous working capacity, machine performance and stability;
5．humanized design, ergonomic, long hours of work is not fatigue.
Main advantages: fast, high efficiency, large depth, small deformation, heat affected zone is small, high quality welding, solder joint pollution-free, high efficiency and environmental protection.
Application
The model laser spot welding machine is specifically for jewelry laser welding of a product, mainly used in gold and silver ornaments hole and spot welding sand holes, can also be used for cold work high alloy steel, hot forging high alloy steel, nickel tool steel, advanced Steel, copper alloy, brass, copper, high-toughness aluminum alloy welding and other metal welding materials.
Configuration
Item
| Standard Configuration
| Brand
| Quantity
| Origin
| Remarks
|
1
| Cavity
| Morgan
| 1 set
| Britain
| Ceramic cavity
|
2
| Water cooling machine
| Shenzhen DoLoYo
| 1 set
| Shenzhen
| Low power consumption, low noise, environmental quality
|
3
| Optical lens group
| Singapore Wavelength
| 1 set
| Singapore
|
|
4
| Laser power supply
| Perfect Laser
| 1 set
| Perfect Laser
|
|
5
| microscope
| Micro
| 1 set
| Shenzhen
|
|
6
| Crystal pump
| East Chun
| 1 set
| Chengdu
|
|
7
| Xenon lamp
| Mechanical Research Institute
| 1 piece
| Hefei
|
|
Technical Data
model
| PE-W150
| PE-W200
|
Maximum laser power
| 150W
| 200W
|
Laser wavelength
| 1064nm
|
Laser power supply
| 6KW
| 9KW
|
Laser welding minimum capacity pool
| 0.1mm
|
Laser pulse frequency
| ≤50Hz
|
Laser pulse width
| ≤20ms
|
Spot adjustment range
| 0.1～3.0mm
|
The spot size
| 0.2～3.0mm
|
Protective gas
| 1 way
|
electricity demand
| 220V single phase/50Hz/20A
|
Dimensions of the system
| Host system
| 1000×480×1080mm
|
cooling system
| 720×510×970mm
|
net weight
| 115KG
|
>>
