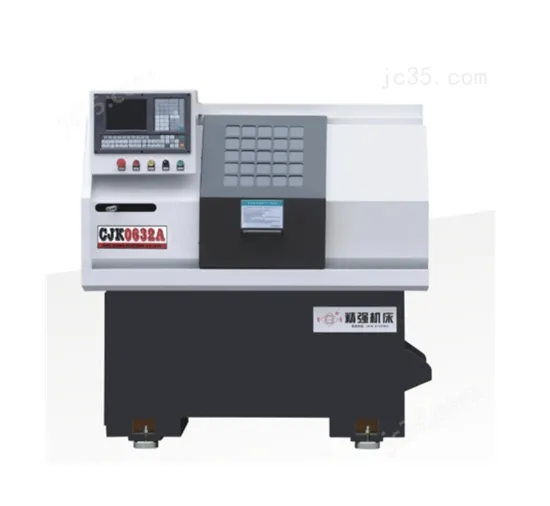

High Precision CNC Turning Center Hard Rail CNC Lathe Machine for Industrial Cutting

Product Description

High Precision CNC Turning Center Hard rail CNC lathe machine for Industrial cutting
Product Parameters

Maximum diameter of bed body(mm)	Φ320mm
Maximum length of workpiece(mm)	230mm
Maximum workpiece rotation diameter on the slide(mm)	Φ70mm
Diameter of spindle through hole(mm)	Φ38mm
Diameter of drawing hole(mm)	Φ30mm
Spindle speed range (stepless)(r/min)	200-3000r/min
Fast forward on the X-axis(mm/min)	servo 8000mm/min
Z-axis fast forward(mm/min)	servo 10000mm/min
Horizontal feed velocity (stepless)X axis(mm/min)	5-1000mm/min
Longitudinal feed velocity (stepless)Z axis(mm/min)	10-2000mm/min
Main motor power (frequency conversion)(KW)	3KW
X to the trip(mm)	270mm
Z to travel(mm)	250mm
Row tool rest (electric tool rest)	3 (pieces) (4 workstations)
X axis pulse equivalent(mm)	0.005mm
Z axis pulse equivalent(mm)	0.01mm
Working thread range (metric)(mm)	0.25-12mm
Working thread range (imperial)	33 1/2-3 teeth/hour
Machine tool shape long.Wide.High(mm)	1630*1150*1500
Machine net weight(KG)	Approximately 1000kg

Product Description
Application
Suitable for processing various small and medium-sized shaft and disc parts, capable of turning various threads, arcs, cones, and inner and outer surfaces of rotating bodies,
It is in industries such as plumbing equipment, valves, appliances, instruments, automobiles, motorcycles, bearings, etc. It has advantages such as high speed, efficiency, and high reliability.
Characteristics The bed and drag plate guide rail are ultrasonic hardened, with a long service life.
Adopting precision ball screw pair transmission.
Quick clamping mechanism with high work efficiency.
Elastic chuck and 130 three jaw chuck are optional.
Clamping method, manual, pneumatic, hydraulic (optional).
Company Profile
Taizhou Chuzhou Electromechanical Equipment Co., Ltd. which is located in yuhuan city, Zhejiang Province . The company is a professional production, sales of brass valve sanitary ware machinery and equipment group company. We have 5 factories, mainly producing machines for copper valves sanitary ware products : automatic hot forging Trimming Machine , shot blasting machine, automatic polishing machine, automatic CNC machine tool, automatic assembly machine, whole line processing and testing equipment . We have a group of professional engineers in charge of technology, manufacture, installation and testing, so we can guarantee the good performance of our machines. We can provide customers with full service and technical consultation according to their different requirements . Cosmos company would like to offer the best machines, and build ourselves as the bridge and window for both overseas and domestic enterprises and customers. Products are exported to Russia, India, Iran, Turkey, United Arab Emirates, Vietnam, Uzbekistan, Saudi Arabia, Syria, Jordan, Indonesia, Singapore, Thailand, Pakistan, South Africa, Egypt, Nigeria, Kenya and other countries.
welcome to build business relations, cooperate and develop together with us. Please feel free to contact us for details.
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are factory.
Q2: What is the delivery time?
A2: 20-40 working day, based on factory's production order conditions.
Q3: How to installation machine?
A3: We supply overseas service, engineer can go to your place guide installation and debugging.
Q4: What size machine suit for us?
A4: We design machine following your request, usually based on your workpiece size, weight and efficiency.
Q5: How to control the quality?
A5: One year warranty,and 10 teams QC to check every part from drawing to machine finished.

---
