| US$19,200.00-24,000.00 | 1 Set (MOQ) |
| Model NO. | Installation | Customized | Tooling Machine | Transport Package | Origin |
| 24cavity | Fixed | Customized | CNC, CNC Lathe, EDM, Engraving, Wire-Cutting | Wooden Case | Taizhou China |
| Runner | Certification | Mould Life Time | Cycle Time | Specification | HS Code |
| Hot Runner | ISO, TUV | 3-5million Shots | 11-17s | ISO SGS TUV | 8480410090 |
| Design Software | Standard | Controller Way | Cavities | Trademark | Production Capacity |
| Ug, CAD, Pre | HASCO | Point Control | 24 Cavities Preform Molds | CS MOULD | 30 Sets/Month |

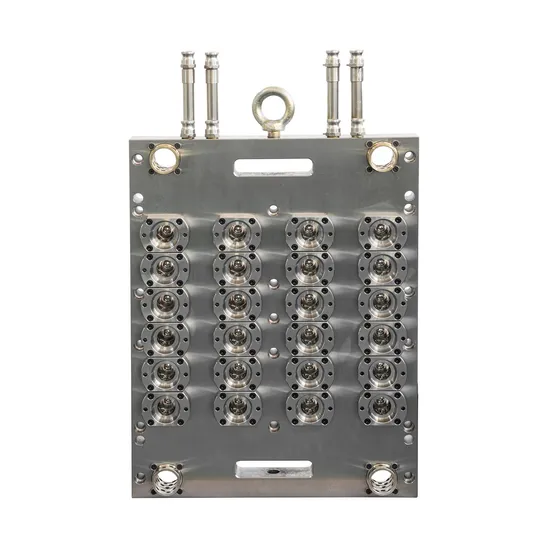

| Mold Model | 24cavity pet preform mould |
| Preform Neck | 28mm, 30mm, 38mm |
| Preform Weight | according to customer's requirement |
| Runner | Hot runner |
| Core Material | S136 |
| Cavtiy Material | S136 |
| Screw Neck Material | S136 |
| Mold Base | 4CR13 Steel |
| Mold Size | 680*600*500 |
| Cycle time | different weight with the different cycle time |
| Scope of Application | water bottle |
| Delivery time | 60-70days |
| Payment | 40% deposit, the rest payment is paid before shipment |
