US$19,000.00-22,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Number of Work Station
24
Max Injection Volume
785cm3
Max Injection Pressure
140kg/Cm²
Mold Clamping Force
60tons
Mould Space(L*W)
365*370mm
Auto Thermo Controller
4sets
Heating Bands Power
9.5kw
Machine Size(L*W*H)
4800*2800*2500mm
Transport Package
Nude Cargo
Specification
4800*2800*2500mm
Production Capacity
35-50pair/H
Product Description

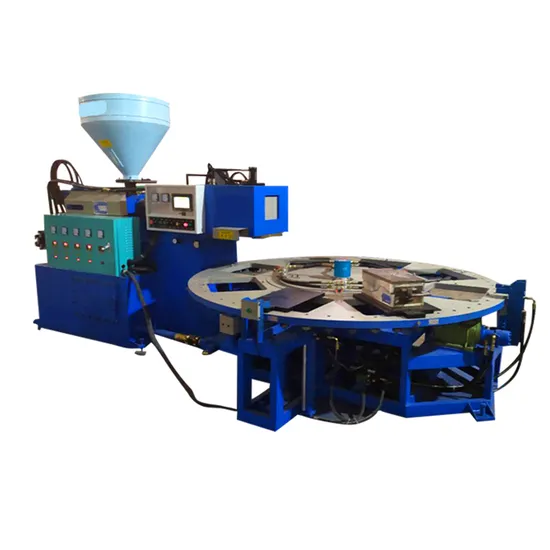

Specification for 24 station:
| Item | Unit | Specification |
| Number of work station | Stations | 24 |
| Screw Diameter | mm | 65 |
| Max injection volume | cm³ | 785 |
| Max injection pressure | Kg/cm² | 140 |
| Mold Clamping Force | Tons | 60 |
| Mould space(L*W) | mm | 365*370mm |
| Oil capacity | ML | 700 |
| Motor | kw/hp | 18.5+5.5 |
| Auto thermo controller | Sets | 4 |
| Heating bands power | Kw | 9.5 |
| Machine size(L*W*H) | mm | 4800*2800*2500 |
| Machine Weight | Tons | 6.5T |
