High-Speed CNC Glass Cutting Machine for Precision Flat Glass Shaping with Diamond Wire

Product Description

High-Speed CNC Glass Cutting Machine for Precision Flat Glass Shaping with Diamond Wire
Product Description
Product Description: Diamond Wire Saw for Glass The diamond wire saw for glass is a state-of-the-art cutting machine designed to deliver fast, precise, and smooth cuts on various glass materials. This advanced tool employs a diamond-embedded wire loop, ensuring clean and accurate slicing, making it ideal for high-speed production environments where quality and efficiency are paramount.
The wire loop design of the diamond wire saw allows for continuous cutting at high speeds, approximately 60 meters per second, without the need to reverse direction. This results in a smoother cut surface with minimal kerf loss, significantly reducing material waste. The industrial-grade diamonds embedded in the wire provide exceptional cutting power and durability, ensuring long-lasting performance even with intensive use.

Key Features:1. High Cutting Speed: The diamond wire saw operates at high speeds, significantly reducing cutting time compared to traditional methods.
2. Smooth Cut Surface: The diamond-embedded wire ensures that cuts are smooth and precise, eliminating the risk of chipping and rough edges.
3. Enhanced Efficiency: The cutting efficiency of the diamond wire saw is 4 to 5 times greater than that of inner diameter (ID) slicing machines, dramatically increasing production throughput.
4. Durability: The robust design and high-quality materials ensure long-lasting performance, minimizing the need for frequent maintenance and wire replacements.
Additional Information:1. Customizable Dimensions: The diamond wire saw can be tailored to fit specific operational needs, with customizable dimensions to suit various workspace requirements.
2. Adjustable Functions: The machine's features and functions can be adjusted to meet specific cutting requirements, ensuring optimal performance for your particular application.
3. Support and Service: We offer comprehensive support and after-sales service, including installation assistance, training, and maintenance to ensure your equipment operates at peak performance. The diamond wire saw for glass is an indispensable tool for industries that demand high precision and efficiency in glass cutting operations. Its superior performance and cutting-edge technology make it the ideal choice for achieving the highest quality results in the most demanding applications.

Product Parameters

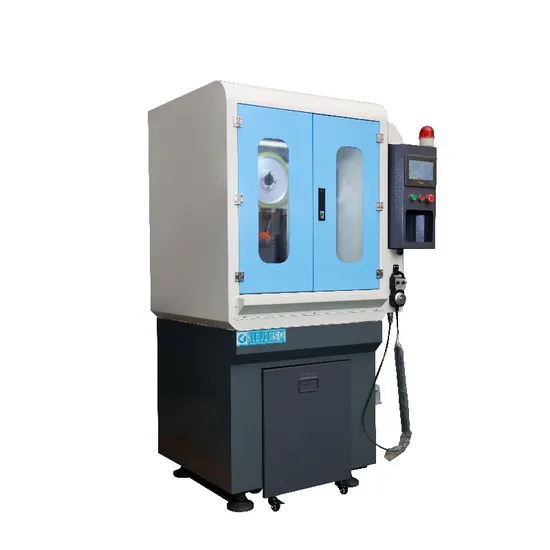

KLDJ20SQ Wire Saw Cutting Machine
Equipment parameters
Workbench size	200×280 mm
Linear axis travel	Y250×Z250 mm
Maximum product size	200×250×230 mm
Workbench load-bearing capacity	50Kg
Maximum speed of workbench	-
Maximum linear velocity	2000 m/min
Processing efficiency	0.1~1000 mm/min
Diameter of diamond sand loop	Φ0.35~0.8 mm
positioning accuracy	± 0.01 mm
Processing accuracy	≤0.03 mm
Processing surface roughness	Ra ≤ 1.25
Diamond thread length	1790 mm
Leading wheel diameter	Φ260 mm
Secondary guide wheel diameter	Φ180 mm(2PCS)
Maximum thrust of cylinder	377 N
Touch screen size	7 ″
Equipment power	4 Kw
Gas source pressure	0.6~0.8 MPa
working voltage	220V 50Hz ±10%
ambient temperature	10ºC~30ºC
Equipment weight	400 Kg
Equipment body size	1000×800×1850 mm

Details
Application
Applications: Optical Glass Manufacturing: Precision cutting of optical glass components for lenses and other high-precision optical devices. Architectural Glass: Fast and efficient cutting of large glass panels used in construction and architectural designs. Automotive Glass: Slicing automotive glass with high precision to meet stringent industry standards for safety and quality. Consumer Electronics: Cutting glass for screens and displays used in smartphones, tablets, and other electronic devices. Research and Development: Ideal for laboratory settings where precise and clean cuts of glass are essential for experimental studies.
Company Profile
Changzhou Kuaile Science and Technology Co.,Ltd. is a professional manufacturer that develops and manufactures CNC Cutting machine, CNC engraving machines and engraving and milling machines. Since its establishment in 1998, Happy Technology has made a series of major achievements in the fields of CNC numerical control technology, precision engraving machine design and manufacturing, and small knife fine engraving technology. Now the company has won the trust and love of users with solid manufacturing technology, excellent product quality, and perfect after-sales service. It has a high degree of recognition in the same industry and has developed into a new type integrating R&D, production and sales. industry.
