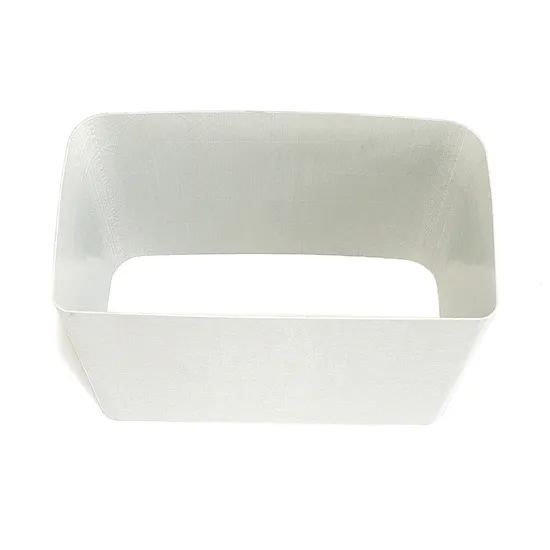

Outdoor FRP Fiberglass Composite Antenna Housing Radome for Base Station

Product Description

Fiberglass Radomes Product Description 5G's network uses higher frequency band than 4G--3.3-3.6GHz, 4.8-5.0GHz and 20GHz. As the protective shell of the base station antenna, the dielectric property of the radome is an important factor affecting the transmission quality of 5G signal. Therefore, the radome material requires the performance of low dielectric loss. Meanwhile, the coexistence of 5G communication multi frequency (3G, 4G, 5G) leads to the increase of antenna volume, which requires higher strength and modulus of the radome. In order to avoid antenna hoisting and save installation time and cost, it is necessary to control the weight of multi frequency antenna within 50kg. Lightweight radome materials are also developed to meet the requirement of 5G antenna design.
Rule Composites carried out technical research on special polymer materials and products for 5G base station antenna radome, and provide the solutions of the radome products with low dielectric constant, low dielectric loss, weather resistance, high strength, high modulus and environmental friendliness.
Product Parameters

Item	Common wall fiber glass	Thin wall fiber glass	Thin wall fiber glass T1.3mm,pultruded	Thin wall fiber glass T1.5mm,pultruded	Test Position
Dielectric Constant(Dk)	3.9	3.8	3.2	3.4
Dissipation Factor	0.096	0.035	0.021	0.028
Density(g/m³)	1.73	1.78	1.71	1.73
Surface Hardness(Shore D)	59	/	45	A6
Tensile Strength(Mpa) Thickness 3mm	440	369	423	429	portrait
	38.1	55.6	51.6	48.3	transverse
Tensile Modulus(GPa)	18.8	4.9	34.5	34.4	portrait
	4	2.1	9.3	9.1	transverse
Flexural Strength(MPa)	541	412	524	488	portrait
	132	149	219	202	transverse
Flexural Modulus(GPa)	12.1	14.1	12.5	12.2	portrait
	8	7.3	47	4.8	transverse
Notched Impact Intensity (kj/m2)	227	199	2	122	portrait
	28.6	42	35.2	33.6	transverse
Water Absorption(%)	0.7	0.5	0.7	0.8

Production Process Our Advantages Rule Composite Material covers an area of 50, 000 square meters, with a modern office building, an independent R& D center and a high-standard production workshop, equipped with the leading DCS automatic control production device. We also have a strong and advanced quality control department and technical support laboratory.
Company Profile Founded in 2002, Changzhou Rule Composite Material Co., Ltd, is a enterprise engaged in in manufacturing high-performance unsaturated polyester resin, gel coat, glass fiber reinforced composite materials and other related products, also professional in research, development as well as technical consulting and services of composite materials.
RULE focuses on the production of excellent-quality and creative-design resin products, so it is trustworthy. Our sweat and wisdom witness the footprints of yesterday's struggle, passion and dream fulfill today's victory. Forging ahead to make innovation in market economy, pursuing value of "innovation, creativity, sharing" in practice, it harvests a stream of praises and honors.
Certifications FAQ 1. How can I get a sample?
Small quality of sample in stock will be free, but the freight will be charged.
2. Are you able to adjust the formula to meet our requirement?
We have our own technical department, after you test the sample, please tell us your detailed requests, we are able to adjust the resin according to your requests, and bring better properties to your finished products.
3. What is the lead time for mass production?
Honestly, it depends on the quantity. We will try our best to make the production plan according to your ETA.
4. What is your terms of payment?
100% full payment for the 1st trial order; from next order, 30% payment in advance, 70% payment after buyer get the B/L copy. We also accept L/C if you need.

---
