DC Motor DC Gear Motor 24VDC/12VDC Dcr4550 with Magnetic Steel Sheet High Torque Low Noise for Standing Desk

Product Description

PROFESSIONAL MANUFACTURER OF SINGLE-PHASE SERIES MOTOR /GEAR MOTOR
Power,Speed,Torque,Shaft ,Stator Lamination,Rotation And Installing Location
can be customized according to customer's requirements.
Product Description:

Product Name:	DC Gear Motor
Model No.	DCR45-50
Brand:	XINJIA
Application:	for for Standing desk/adjustable desk/Juicer/Door opener
Starting Mode	Direct on-line Starting
Rated Voltage:	DC24V
Rated Power:	50W
No-load Power:	30W±10%
Rated Speed:	95rpm±10%
No-load Speed:	136rpm±10%
Gear Ratio:	39:1
Rated Torque:	2.0N.m
No-load Current:	1.4A±10%
No-load Spark:	Class≤2
Withstand Voltage:	1800V/1sec/5mA
Output Bearing:	Ball Bearing
Out-axis Diam:	ø15
Customized:	yes
Packing:	foam&carton,or accroding to customers' specific requirements
MOQ:	500 pcs
Delivery Time:	Depends on quantity from 2 weeks to 4 weeks.
Payment Term:	T/T, L/C, D/P

Remarks: The performances as above are just for reference only. We can adjust our motor specifications according to customer's requirements. OEM & ODM are both available. Please feel free to contact us with your detailed requirements . If ask for quotation, please tell voltage, draft, input power, air flow at least, so we could quote quickly.

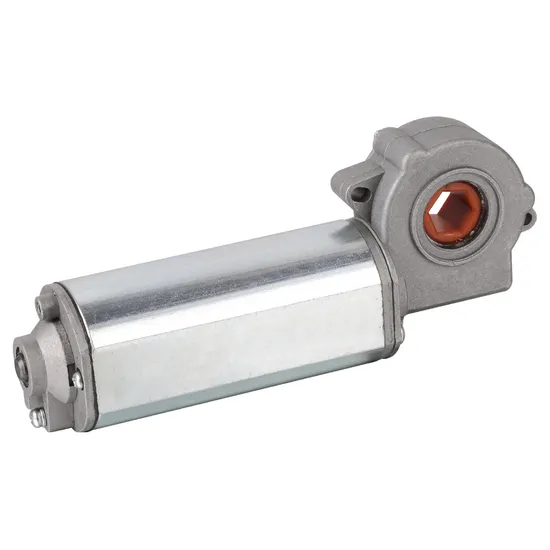

Detail View:
Assembly Drawning:
Brief Introduction
Ningbo Yinzhou Xinjia Electric Machinery Factory was established in 1997, it is located in Yinzhou District of Ningbo, Zhejiang Province.We have about 50,000 square meters of the building and nearly 300 employees. In addition, the transportation around the factory is very convenient, it is close to the TongSan Highway, and is just 8 kilometers away from the Ningbo Airport.
Through years of accumulation and development, our factory is now a professional manufacturer of single-phase series motor and gear reducer motor.The application of our product covers many fields,it is mainly used in home kitchen appliances or electric tools, such as juicer, ice crusher, meat grinder, coffee bean grinder , lawn mower and so on.
Our factory has advanced universal motor production line, strong technical force, perfect testing means, products can be produced according to international and domestic standards, but also according to customer requirements or provided samples, drawings and other special design.Our work sticks to the principle of striving for existence by fine quality. Our products sell far all over the world.Our factory will, and as always, wholeheartedly serves broad old and new customers both at home and abroad. We are looking forward to establishing business relationships with customers all over the world.
FAQ:
Q1: Are you a trade company or a manufacturer?
A1: Ningbo Yinzhou Xinjia Motor Manufactory was established in 1997, we are a professional
manufacturer of single-phase series motor and gear motor.
Q2: How about sample and charge?
A2: Our sample policy stipulates that customers must pay for sample and express fee,but we could
return the sample and express fee based on certain order quantity. You can specify the express company you want that like DHL, or you can call your courier to pick up from our factory.
Q3: What is your payment terms?
A3: 1. We accept T/T, D/P, L/C at sight.
2. 30% deposit in advance and 70% balance before shipment.(Amount more than 3000USD)
Q4: How can we get detailed price?
A4: Please offer us detailed information of the product,specific packaging requirements and purchasing
quantity.
Q5: Is it possible to visit your factory
A5: Sure. But please kindly keep us posted a few days in advance. We need to check our schedule to see if we are available then.
Q6: How to guarantee punctual shipment for my order?
A6: We give priority to export orders and keep updating progress from production to delivery.
Q7: What about the after-sales service?
A7: Through emails, pictures or guest samples to confirm the real cause of the problem. If there is really
a product problem, we will redo with no charge.
Q8: What is your delivery date?
A8: The delivery date is about 20-30 days after receiving your deposit,it depends on the quantity you
order.

---
