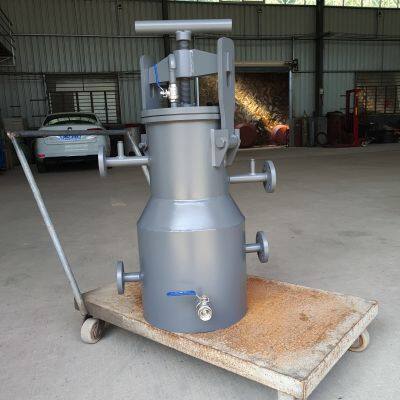

Ultra-high working pressure quick-opening fuel filter

Product Details

Product Description

Product Description
Fuel filter/Quick-opening filter
peculiarity
1. Using the pressing method of turning the pressure plate, the screen can be quickly and faster within 3 minutes, saving the maintenance time.
2. It can withstand the maximum ultra-high working pressure of 16bar without affecting the sealing effect.
3. The use of special materials of sealant, can be used under certain pH conditions, not easy to damage.
4. Double jacket mode, the outer layer can pass the heat transfer oil to ensure the smooth flow of heavy oil.
5. Do not use double jacket heating, you can also use electric heating, electric heating tube directly immersed in oil heating.
6. On the inlet and outlet pipe of the heater, a pressure gauge can be set for observing the oil supply.
Fuel filter Model: GLQ2250 (inlet flange DN50, outlet flange DN25, heat transfer oil flange DN25), GLQ3800 (inlet flange DN50, outlet flange DN25, heat transfer oil flange DN25)
Random matching: filter body, filter basket (2 pieces, one for one), O-shaped sealing ring (2 pieces, one for one)
Main technical parameters:
Filter area: 2250mm2 or 3800mm2
Filtration capacity: 4000L/h or 6000L/h
Mesh number: 20 mesh
Working pressure: 0~+16bar
Heat transfer oil temperature: 0-200℃
Fuel temperature: 0-100℃
