US$25,000.00-30,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Usage
Special Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Certification
ISO9001: 2000
Transport Package
Nude Packing
Specification
5500*2100*2650mm
Production Capacity
3000units/Year
Product Description

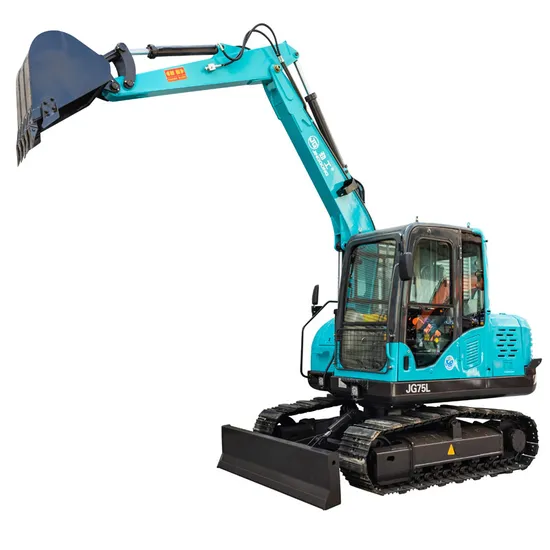

China JG-75L 6 Ton Crawler Excavator
JG 75L has beautiful appearance, high configuration, superior performance, low fuel consumption, and wide operating range.
It is suitable for land loosening of vegetable greenhouses, landscaping in municipal departments, digging pits in orchard
nurseries, concrete pavement breaking, sand and stone mixing, and construction operations with narrow space.
| SPECIFICATIONS |
| RANGE OF OPERATION | Boom length | 3300mm |
| Arm length | 1850mm |
| Maximum Digging Reach | 6350mm |
| Maximum Digging Depth | 3570mm |
| Maximum Digging Force | 45KN |
| Maximum Digging Height | 6600mm |
| Maximum Dumping Height | 4500mm |
| Back-end radius of gyration | 1800mm |
| DIMENSION | (Length*width*height) travel position | 5500*2100*2650mm |
| Distance From The arm to Rotate Machine | 3600mm |
| Wheel base | 2060mm |
| Track Gauge | 1570mm |
| Width Of Crawler | 400mm |
| Ground clearance of counterweight | 780mm |
| Min ground clearance | 280mm |
| TECHNICAL PARAMETERS | Angle of rotation | 360° |
| Machine weight | 6300kg |
| Engine model | YN36GB2/4102 |
| Rated Power | 48KW/58.8KW |
| Rated Speed | 2200r/min |
| Hydraulic system working pressure | 20Mpa |
| Hydraulic system flow | 120L/min |
| Metering gear pump | 2*28ml/r |
| Max Hauling force | 45KN |
| (High speed/low speed) | 4.5/2.5km/h |
| Grade Climbing ability | 70%/35° |
| Volume Of Bucket | 0.25m3 |
| Revolution Overdrive Pressure | 16Mpa |
| Full circle swinging time | 5.5s |
| Fqt Fuel Quantity | ≥4L/h |
| Capacity Of The Fuel Tank | 110L |
| Hydraulic Tank Capacity | 110L |
>>
