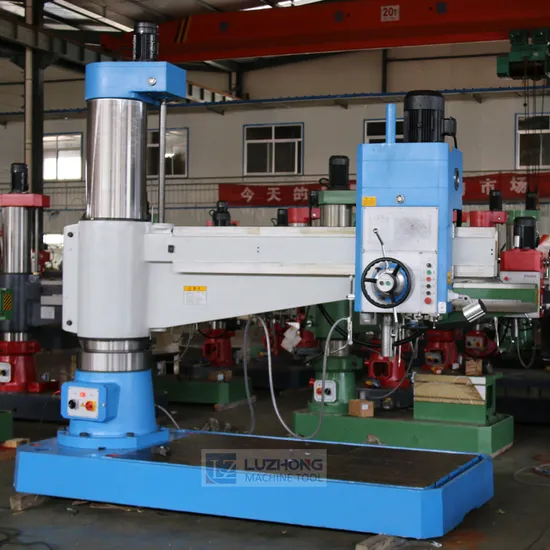

Heavy Duty 63mm Z3063*20A Hydraulic Radial Drilling Machine price for sale

Product Description

Heavy Duty 63mm Z3063*20A Hydraulic Radial Drilling Machine price for sale
Product Description
Product description:
hydraulic clamping Hydraulic transmission Hydraulic pre-selection Electrical machinery double insurance Product Parameters


Product main technical specifications:

Specifications	Z3063*20A
Max. drilling diameter	Φ63
Distance from spindle nose to table surface	220-1300
Distance between spindle axis and column surface	430-1900
Spindle travel	400
Spindle taper	Morse No. 5
Spindle speeds range	16-1600(16 steps)
Spindle feeding range	0.04-3.2(16 steps)
Rocker rotary angle	+/-90°
Main motor power	5.5
Movements motor power	1.5
N/W	6500
Overall dimension (L*W*H))	3080×1250×3205

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
