Metal Tube Laser Cutting Machine 3kw Stainless Steel/Carbon Steel Tube Cutting Machine

Product Description

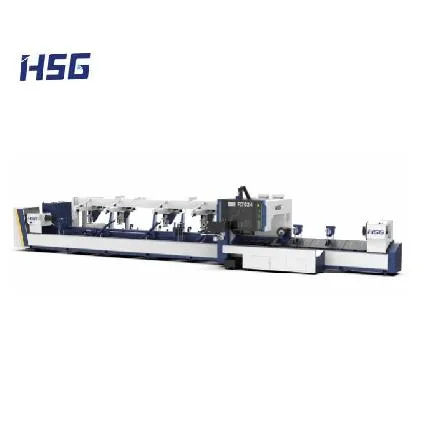

Product Type: R7024 Series Three-chuck Tube Laser Cutting Machine 3000W-6600W, that can cut 20-220mm round tube and 20-150mm square tube, with automatic cutting head and three full-automatic pnuemtic chucks.
Product Description
The point of R7024
1.Cutting Capacity
Length of Tube 7000mm
Weight of Single Tube 300kg
2.HSG-X9000 CNC System
21.5-inch touch screen with concise interface Real-time monitoring of core components and early warning if abnormal Simple lines in favor of low failure rate Auxiliary functions incl. tube error detection, welds check Rich tube cutting library * Bus refers to data transmission mode via on-site bus control system.
3.Three Full-automatic Pneumatic Chucks
* One-key automatic centering, adjustable clamping force, dust-proof design* Reduce cutting scraps and improve material utilization
5. Intelligent Production System
Automatic Multi-tube Loading Device (Optional)
Load many tubes synchronously, tube length 5800-7000mm
Unloading Device (Default)
The machine comes standard with 4m unloading device, incl. supporting bracket and feeder used for supporting tubes to be cut.
Product Parameters

Model	R7024
Power	3000W-6600W
X/Y-axis Positioning Accuracy	±0.03mm/m
X/Y-axis Repositioning Accuracy	±0.03mm
Max. No-load Speed	100m/min
Max. Acceleration	1.0G
Max. Rotating Speed of Chucks	100r/min
Cutting Capacity of Round Tube	Φ20-Φ240mm
Cutting Capacity of Square tube	20*20mm-240*240mm
Max. Length of Tube	7000mm
Max. Weight of Single Tube	300kg
Min. Tailing	0
Overall Dimensions (L*W*H)	14000*5000*2300mm

Cutting Sample


Certifications



Packaging & Shipping
Our high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic film and filling foam, can satisfy ocean shipping criteria and will ensure that machines are transported to users safely.

Company Profile
HSG Laser Co., Ltd.
HSG Laser, founded in 2006, as a national hi-tech enterprise with an eye to R&D, production and sales of laser equipment, is now mainly dedicated to serve global customers with intelligent metal forming solutions. Starting from China, HSG Laser has expanded its service network to 100+ countries and regions after 16 years of high-quality development. It has two wholly-owned subsidiaries in global industrial powers, Germany and Japan, and creates its own high-end brand Xlase. In China, four standardized intelligent equipment manufacturing bases have been completely built in its headquarters (Foshan City), Puhang, Suzhou and Jinan. HSG frame also includes 2 domestic subsidiaries, 3 branches and 20 operation service centers.
FAQ
1. who are we? We are based in Guangdong, China, start from 2009,sell to Domestic Market(78.70%),South Asia(3.66%),Eastern Europe(3.05%),Southeast Asia(2.99%),Western Europe(2.44%),Mid East(2.20%),Eastern Asia(1.83%),South America(1.46%),Oceania(1.19%),North America(0.73%),Africa(0.71%),Southern Europe(0.61%),Northern Europe(0.43%). There are total about 1000+ people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Laser Cutting Machine,Sheet & Tube Laser Cutting Machine,Tube Metal Laser Cutting machine,Laser Welding Machine,Bending machine 4. why should you buy from us not from other suppliers? Relying on our software development advantages and several years'steady development,we have developed laser machines of eight series and more than 60 models and have reached year's production capacity of more than 2000 sets. 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES; Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language Spoken:English,Chinese,Spanish,Portuguese,German,French,Russian,Korean

---
