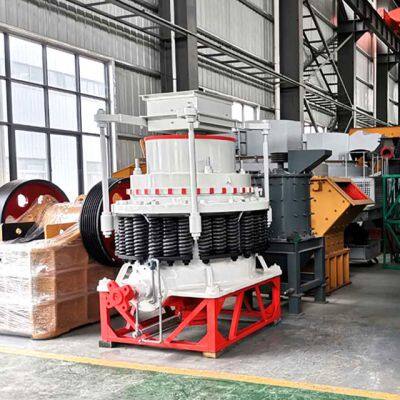

Hot Sale PYD 600 PYZ 900 PYB1200 PYZ1200 PYD1750 Rock Stone Spring Cone Crusher
Spring cone crusher is applied to process above medium hardness ore stone and rock. Its spring insurance system is overload protection to protect machine from damage of metal, grease and water seal are adopted, segregating stone powder and grease to guarantee stable working performance. This type of crushing chamber depends upon the purpose of mineral. The standard type (PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to hyper fine crushing. Spring cone crusher is widely applied in metallurgy, construction. Spring cone crusher is applied for processing above medium hardness ore and rock and widely used in metallurgy, construction, hydropower, transportation, chemical and building materials industry with many advantages like reliable structure, high capacity, easy adjustment and low cost,etc.
STRUCTURE CHARACTERISTICS
1. Large-diameter spindle and heavy main frame give a guarantee on the durability and reliability of this spring cone crusher machine to the operator.
2. Adopting dilute petrol stations for continuous lubrication reduces downtime and maintenance time.
3. All the parts can be disassembled from the sides or top, which is convenient to disassemble the stable and movable cones.
FEATURES AND ADVANTAGES
1. High capacity and superior quality;
2. Key components are made of special materials to support large crushing force;
3.The unique dustproof sealing structure prolongs the replacement cycle of lubricating oil and the service life of parts.
4. All models are available to be fitted with crushing cavities of extra fine, fine, medium, or coarse crushing process.
5.Stable performance, low operating cost and less power consumption.
PRODUCT PARAMETERS
Model
| Diameter of Bottom End of Conical Crushing Head(mm)
| Max Feeding Size(mm)
| Adjustable Range of Discharge Opening
(mm)
| Capacity
(t/h)
| Motor Power
(kw)
| Rev.of Eccentric Shaft
(r/min)
| Weight
(t)
| Dimension (L×W×H)(mm)
|
PYB600
| Φ600
| 75
| 12-15
| 20-40
| 8P-30
| 356
| 5
| 2234×1370×1675
|
PYD600
| Φ600
| 35
| 3-13
| 12-23
| 8P-30
| 356
| 5.5
| 2234×1370×1675
|
PYB900
| Φ900
| 115
| 15-50
| 50-90
| 8P-55
| 333
| 11.2
| 2692×1640×2350
|
PYZ900
| Φ900
| 60
| 5-20
| 20-65
| 8P-55
| 333
| 11.2
| 2692×1640×2350
|
PYD900
| Φ900
| 50
| 3-13
| 15-50
| 8P-55
| 333
| 11.3
| 2692×1640×2350
|
PYB1200
| Φ1200
| 145
| 20-50
| 110-168
| 8P-110
| 300
| 24.7
| 2790×1878×2844
|
PYZ1200
| Φ1200
| 100
| 8-25
| 42-135
| 8P-110
| 300
| 25
| 2790×1878×2844
|
PYD1200
| Φ1200
| 50
| 3-15
| 18-105
| 8P-110
| 300
| 25.3
| 2790×1878×2844
|
PYB1750
| Φ1750
| 215
| 25-50
| 280-480
| 8P-160
| 245
| 50.3
| 3910×2894×3809
|
PYZ1750
| Φ1750
| 185
| 10-30
| 115-320
| 8P-160
| 245
| 50.3
| 3910×2894×3809
|
PYD1750
| Φ1750
| 85
| 5-13
| 75-230
| 8P-160
| 245
| 50.2
| 3910×2894×3809
|
PYB2200
| Φ2200
| 300
| 30-60
| 590-1000
| 8P-(260-280)
| 220
| 80
| 4622×3302×4470
|
PYZ2200
| Φ2200
| 230
| 10-30
| 200-580
| 8P-(260-280)
| 220
| 80
| 4622×3302×4470
|
PYD2200
| Φ2200
| 100
| 5-15
| 120-340
| 8P-(260-280)
| 220
| 81.4
| 4622×3302×4470
|
Processed Materials:
Limestone, Granite, Basalt, River Stones, Quartz, Copper Ore, Iron Ore, Marble, etc.
CUSTOMERS' SITES
Packaging and Shipping
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.
Matching of production and support system allows customers to get best service at lowest cost.
Qualification
Our products have passed ISO9001-2008 international quality management system certification and European CE certification, and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fields
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.
Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.
Q3：What is the shape of the aggregate made by your company's crusher?
A: The shape of the aggregate is related to the design of the crusher or the complete stone production line. Our engineers will
design the most suitable proposal based on raw materials.
Q4: Why shoule I choose VANGUARD Machinery?
A: Ⅰ. Professional manufacturer of supplying mining crushing equipment, stone grinding equipment, ore beneficiation equipment etc.
Ⅱ. Experienced and professional R&D team and manufacturing team;
Ⅲ. We have a group of experienced and excellent after-sales service members who provide services for worldwide customers.
Ⅳ.All products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Ⅴ. Contact us for more details about price, packing, shipping and discount.
