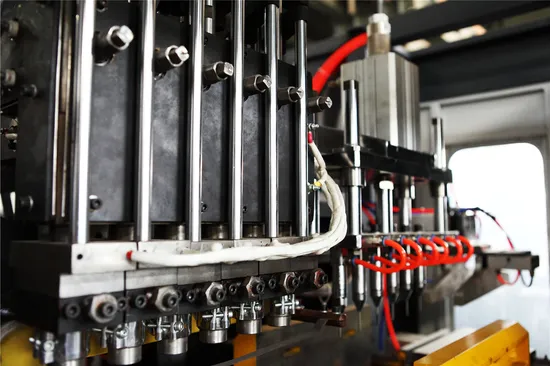

Full Automatic HDPE Plastic Jerry Can Extrusion Blow Molding Machine Syjiii-Sf-75-6 Made in China

Product Description

Yuhuan Shengjiang Plastic Machinery Factory is located in Qinggang economic development zone of Yuhuan, Taizhou city, Zhejiang province. It is an integrated company which includes research & development, production and sales for more than 30years. The Factory is professional on producing blow moulding machine, extrusion machine, and tube drawing machine, especially in the equipments of one-time blow moulding. All the equipments are widely used in the plastic packaging industries for beverage, washing, furniture, toys, automobile, medical, medicine and farm chemical. And the raw materials involved include (PVC, PETG,PE, PP, PS, PC, ABS,)etc.Based on the advanced equipments for production inspection, commissioning and installation.

Code	SYJII-SF-75-6
Max Product Volume	5L
Output	90pc/h
Machine Size	3800mm*2200mm*2200mm
Weight	6000KGS
Voltage&Frequency	Clients' Specified
screw Diameter	75mm
L/D Ratio	1:25
Die Head Qty	6pcs
Max Center Distance of Die Head	/
Extrusion Motor Power	18.5-22KW
Total Power	55KW
Average Energy Consumption	38kw
Extruder heating power	12kw
Number of hating zone	4
Oil pump drive power	7.5KW
Max plasticizing capacity	75kg/h
Platen Size	420mm*400mm
Max mould size	550mm*380mm*220mm
Clamping force	90KN
Opening Stroke	200mm-250mm
Moving Stroke	600mm
Cooling water pressure	0.3MPa
Water consumption	60L/min
Air pressure	0.6Mpa
Air consumption	0.6centiare/min

---
